| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Termination | |
| Termination Style |

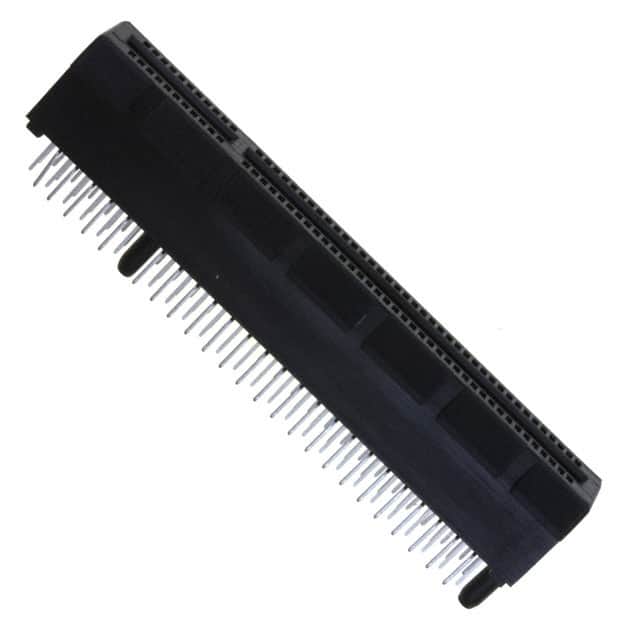

This PCI Express female edge connector from Amphenol ICC features 98 positions arranged in two rows with a 1.00mm pitch. The connector uses cantilever contacts with a gold finish of 15µin (0.38µm) over a copper alloy base material. It is designed for through hole mounting with staggered solder termination. The operating temperature range is -55°C to 85°C. Mechanical features include a board guide and locking ramp for secure mating. The card thickness supported is 0.062" (1.57mm). This connector is suitable for PCI Express card edge applications requiring high-density interconnects.
98 positions.
1.00mm (0.039").
Through hole.
-55°C to 85°C.
Gold, 15µin (0.38µm).
2 rows.
Board guide and locking ramp.
