| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,800 pcs
|
1800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Termination | |
| Termination Style |

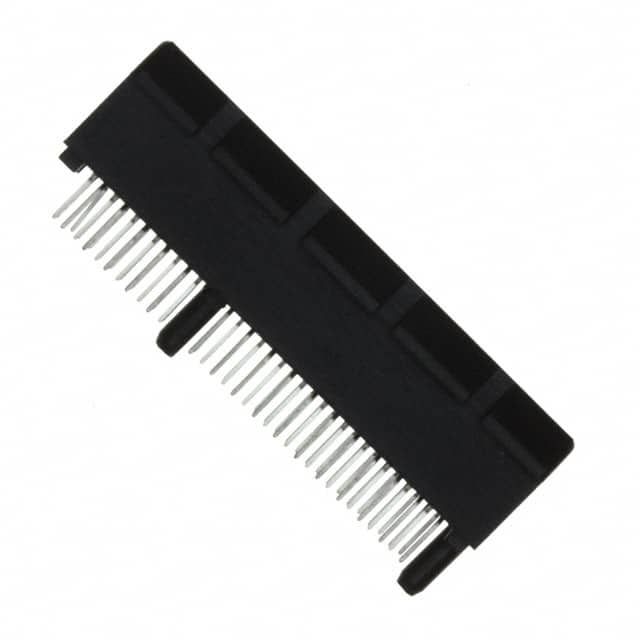

The Amphenol ICC 10018783-10111TLF is a PCI Express female edgeboard connector designed for reliable card-to-board connections. It features 64 positions arranged in two rows with a 1.00mm pitch, providing dual readout capability. The connector uses cantilever contacts made of copper alloy with a gold finish of 0.38µm thickness.
This connector is through hole mounted with staggered solder termination. It includes a board guide and locking ramp for secure mating. The card thickness supported is 1.57mm. The operating temperature range is -55°C to 85°C.
The connector is black in color and is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It is suitable for PCI Express card edge applications in computing and industrial systems.
The pitch is 1.00mm.
It has 64 positions (11 and 21 per row).
Through hole mounting with staggered solder termination.
-55°C to 85°C.
Gold finish with 0.38µm thickness on copper alloy contacts.
