| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,610 pcs
|
4610 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Termination | |
| Termination Style |

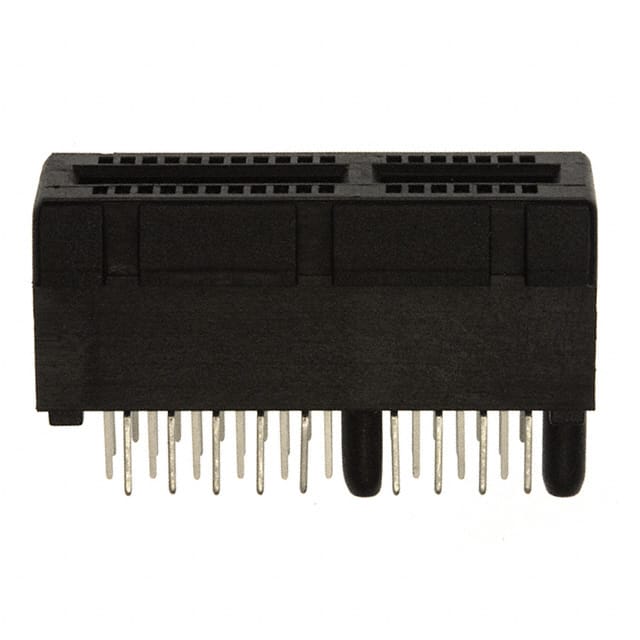

This Amphenol ICC 10018783-10110TLF is a PCI Express female edgeboard connector designed for reliable card edge connections. It features 36 positions arranged in 2 rows with dual readout, supporting a 1.00mm pitch. The connector uses through hole mounting with staggered solder termination for secure attachment to the PCB.
Contacts are made of copper alloy with a 15µin gold finish, ensuring low resistance and corrosion resistance. The cantilever contact type provides consistent mating force. The connector is rated for an operating temperature range of -55°C to 85°C, suitable for a wide variety of environments.
Mechanical features include a board guide and locking ramp to facilitate proper card insertion and retention. The connector accepts cards with a thickness of 0.062" (1.57mm). The housing is black in color. This connector is intended for PCI Express applications and is RoHS3 compliant (unverified).
This connector has 36 positions.
The pitch is 1.00mm (0.039").
The mounting type is Through Hole.
The operating temperature range is -55°C to 85°C.
The contact finish thickness is 15.0µin (0.38µm) of gold.
This connector supports a card thickness of 0.062" (1.57mm).
