| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,400 pcs
|
2400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Termination | |
| Termination Style |

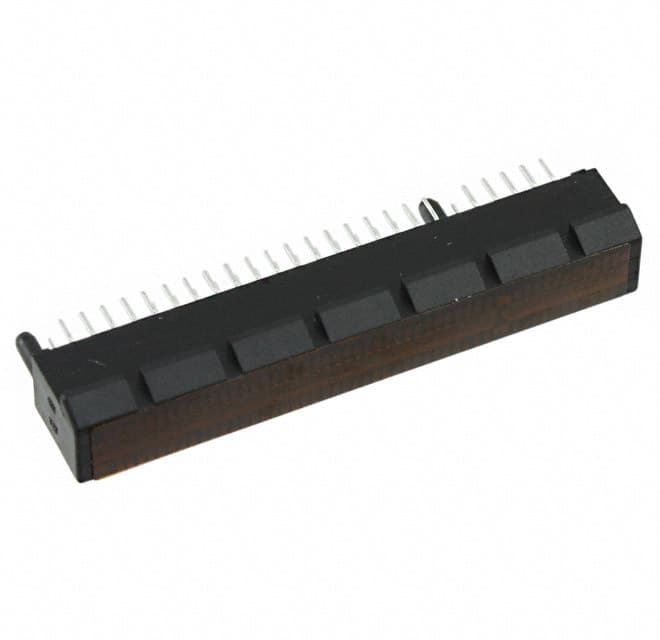

The Amphenol ICC 10018783-10002MLF is a female PCI Express edgeboard connector designed for reliable card-to-board connections. It features 98 positions arranged in 2 rows with a 1.00mm (0.039") pitch, supporting a standard 1.57mm (0.062") card thickness. The connector uses dual readout cantilever contacts made of copper alloy with 0.76µm (30µin) gold plating for enhanced conductivity and corrosion resistance.
This through-hole connector employs staggered solder termination for secure mechanical attachment to the PCB. It includes a board guide and locking ramp for accurate alignment and retention during mating. The housing is black and rated for an operating temperature range of -55°C to 85°C, making it suitable for a variety of industrial and commercial environments.
Designed for PCI Express applications, this connector is ideal for use in motherboards, add-in cards, and other high-speed digital systems requiring a compact, high-density interface.
It has 98 positions arranged in 2 rows.
The pitch is 1.00mm (0.039 inches).
It is a through-hole mount connector with staggered solder termination.
The operating temperature range is -55°C to 85°C.
The contacts have a gold finish with 0.76µm (30µin) thickness.
