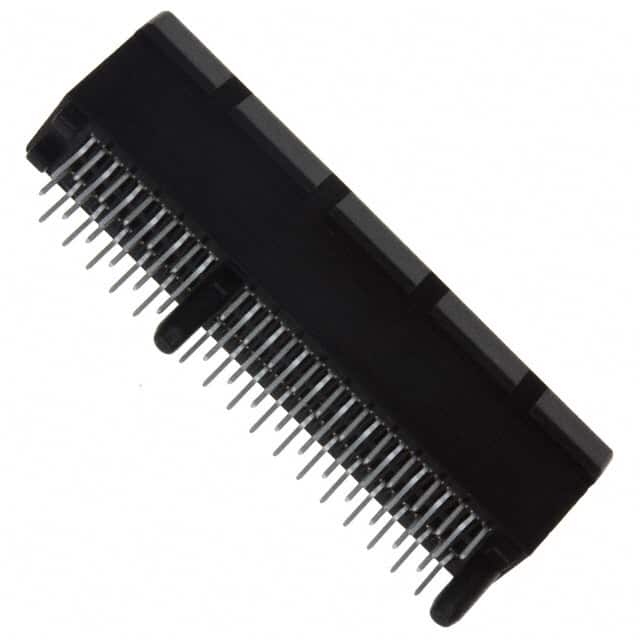

The Amphenol ICC 10018783-10001TLF is a PCI Express female edgeboard connector designed for reliable card edge interfacing. It offers 11/21 positions arranged in two rows with dual readout, providing flexibility for various PCI Express configurations. The connector features a 1.00mm pitch and uses staggered solder tails for through hole mounting, ensuring secure mechanical attachment.
Constructed with a black thermoplastic housing and copper alloy contacts plated with 30µin gold, the connector delivers excellent conductivity and corrosion resistance. The cantilever contact design ensures consistent mating force. Additional features include a board guide and locking ramp to facilitate alignment and retention during assembly.
This connector supports a card thickness of 0.062" (1.57mm) and operates over a temperature range of -55°C to 85°C, making it suitable for industrial and commercial environments. It is RoHS3 compliant and REACH unaffected, though compliance status is unverified.
The connector has 11 and 21 positions (dual count).
The pitch is 1.00mm (0.039 inches).
Through hole mounting with staggered solder termination.
-55°C to 85°C.
Gold plating with 30.0µin (0.76µm) thickness.
0.062 inches (1.57mm).
Board guide and locking ramp.
