10018783-10000MLF
Amphenol ICC

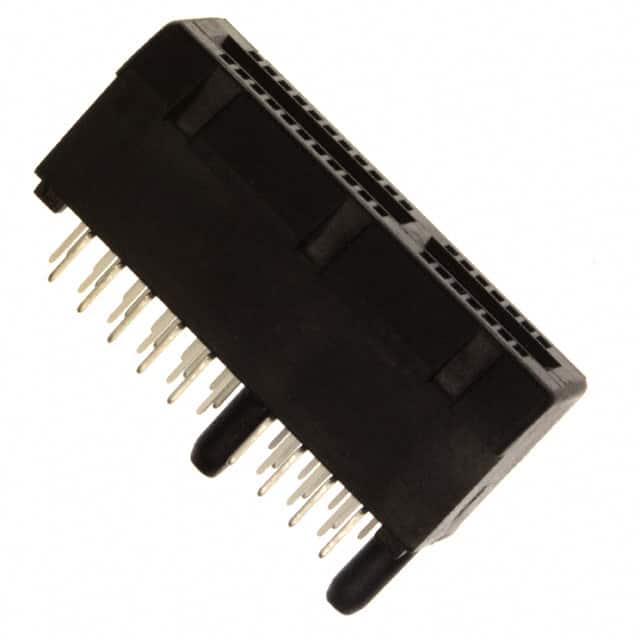

PCI Express female edgeboard connector with 36 positions, 1.00mm pitch, dual read, and through hole mounting.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,405 pcs
|
2405 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Termination |
This PCI Express card edge connector from Amphenol ICC is designed for reliable interconnection in computing and networking applications. It features 36 positions arranged in 2 rows with a 1.00mm pitch, providing a compact interface for PCI Express cards. The connector uses dual read-out cantilever contacts made of copper alloy with 0.76µm gold plating for enhanced conductivity and durability. The through-hole mounting with staggered solder termination ensures secure attachment to the PCB. Additional features include a board guide and locking ramp for proper alignment and retention. The connector is rated for operating temperatures from -55°C to 85°C and is RoHS3 compliant. Its black housing and 1.57mm card thickness compatibility make it suitable for standard PCI Express applications.
36 positions.
1.00mm (0.039").
Through hole with staggered solder termination.
Gold with 0.76µm thickness.
-55°C to 85°C.
RoHS3 Compliant (unverified).
0.062" (1.57mm).
