| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
26 pcs
|
26 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

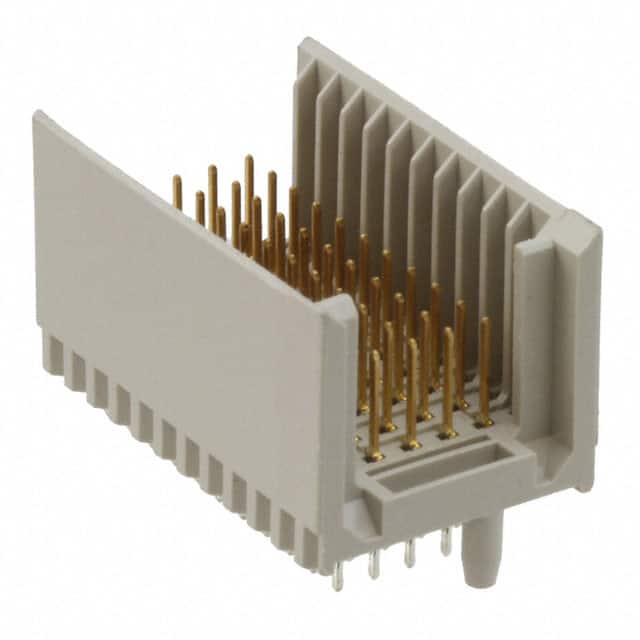

The TE Connectivity 100159-1 is a hard metric, standard backplane connector header featuring 55 positions arranged in 5 rows with a 2.00mm pitch. This male pin header uses press-fit termination for reliable solderless connections in through-hole mounting.
The connector is rated for backplane usage and comes with all positions loaded. Contacts are finished with 30.0µin (0.76µm) gold plating for corrosion resistance and reliable signal integrity. The C 11 connector style is suitable for high-density backplane systems.
This component is RoHS3 compliant and has an MSL of 1 (unlimited) for moisture sensitivity. It is also REACH unaffected. The press-fit termination eliminates the need for soldering, reducing assembly time and improving reliability in high-vibration environments.
The 100159-1 has 55 positions, all loaded.
The pitch is 2.00mm (0.079 inches).
The mounting type is through hole with press-fit termination.
The contact finish is gold with a thickness of 30.0µin (0.76µm).
The connector style is C 11, used for backplane applications.
