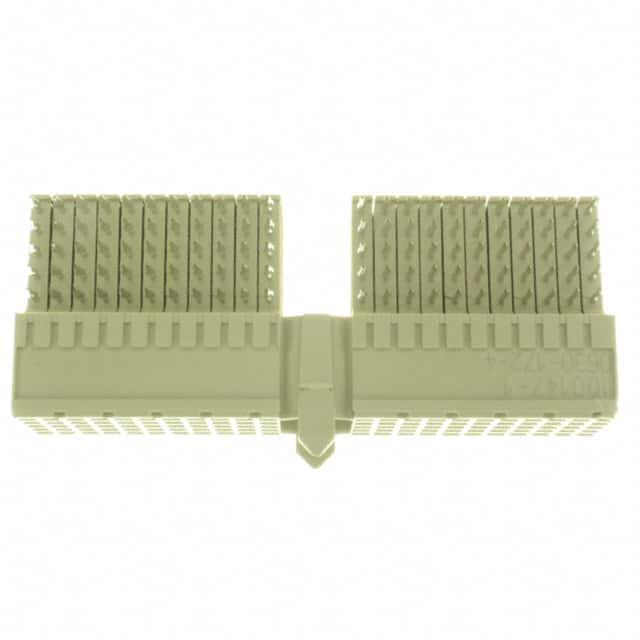

The TE Connectivity 100147-1 is a Z-PACK 2mm HM receptacle connector designed for backplane and board-to-board applications. It features 110 positions arranged in 5 rows (rows B, A, C, E, D) with a 2.00mm pitch. The connector uses press-fit termination for reliable solderless connection and is mounted on the board edge with right-angle orientation. The housing is gray PBT-GF material, and contacts are phosphor bronze with 30µin gold plating on the mating area and tin-lead over nickel on the termination end. This connector is part of the CompactPCI standard and is not RoHS compliant. It is suitable for high-density backplane systems requiring robust signal integrity.
110 positions.
2.00 mm.
Board edge, through hole, right angle with press-fit termination.
5 rows (B, A, C, E, D).
Gold plating, 30µin on mating area.
No, it is not ELV/RoHS compliant according to the datasheet.
Yes, it is part of the CompactPCI standard.
