| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

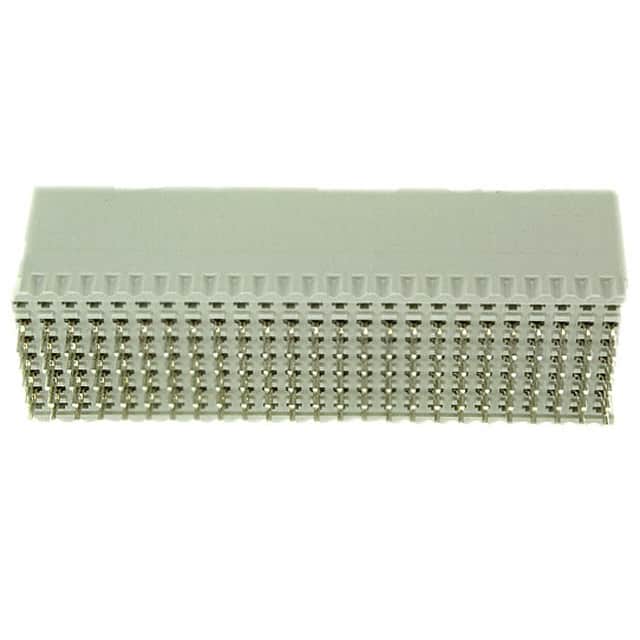

The TE Connectivity 100141-1 is a hard metric backplane header designed for high-density backplane and midplane applications. It features 125 male pin positions arranged in 5 rows at a 2.00mm pitch, providing a compact interconnect solution for demanding systems.
This connector uses press-fit termination for reliable solderless installation into plated through-holes, reducing assembly time and improving mechanical retention. The contacts are finished with 0.76µm gold for reliable signal integrity over repeated mating cycles.
The header is through-hole mounted and uses a B 25 connector style, making it suitable for standard hard metric backplane architectures. All 125 positions are loaded, ensuring full signal or power routing capability.
The connector has 125 positions, all loaded.
The pitch is 2.00mm.
The mounting type is through hole.
It uses press-fit termination.
The contact finish is gold with a thickness of 0.76µm.
It has 5 rows.
