| Category | |
| Manufacturer Name | |
| Accuracy | |
| Applications | |
| Features | |
| Maximum Pressure | |
| Mounting Type | |
| Operating Pressure | |
| Operating Temperature | |
| Output | |
| Output Type | |
| Port Size | |
| Port Style | |
| Pressure Type | |
| Supplier Device Package | |
| Termination Style | |
| Voltage |

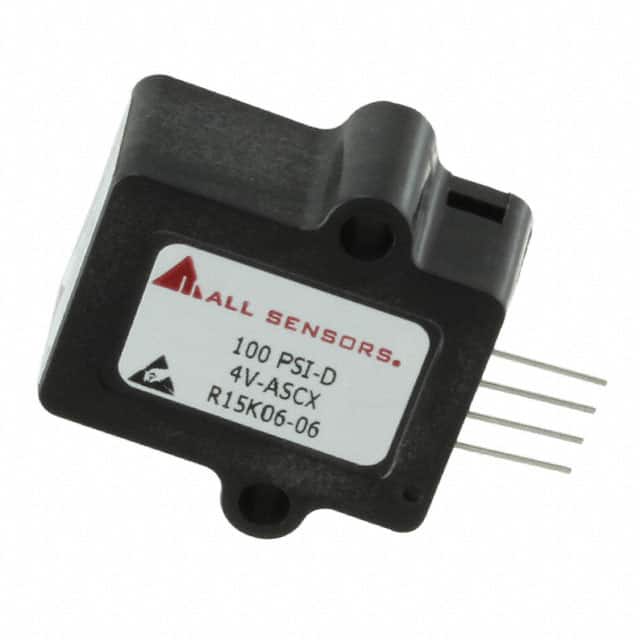

The Amphenol All Sensors Corporation 100 PSI-D-4V-ASCX is a differential pressure sensor designed for board mounting. It features an operating pressure range of up to 100 PSI (689.48 kPa) with a maximum pressure rating of 150 PSI (1034.21 kPa). The sensor offers an amplified Wheatstone bridge output, providing a voltage range of 0.25V to 4.75V, and requires an operating voltage between 4.5V and 5.5V.
This sensor is temperature compensated and suitable for operation in environments ranging from -25°C to 105°C. It includes dual male tube ports with a size of 0.19" (4.8mm) and a barbless port style. The component is housed in a 4-SIP (Single In-line Package) and is designed for through-hole mounting with PC pin termination.
Key specifications include an accuracy of ±0.5% and features such as amplified output and temperature compensation. The compact design and robust specifications make it suitable for various industrial and commercial applications requiring precise pressure monitoring.
| Qty | Low | High |
|---|---|---|
| 1+ | $70.00 | $105.00 |
| 10+ | $60.00 | $90.00 |
| 100+ | $50.00 | $80.00 |
| 1,000+ | $40.00 | $70.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating pressure range is ±100 PSI (±689.48kPa).
The output voltage range is 0.25 V to 4.75 V.
The sensor requires an operating voltage between 4.5V and 5.5V.
The sensor can operate in temperatures from -25°C to 105°C.
It provides an amplified Wheatstone Bridge output.
It has dual male tube ports, 0.19" (4.8mm) in size, with a barbless port style.
The accuracy is ±0.5%.
