| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
282 pcs
|
282 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

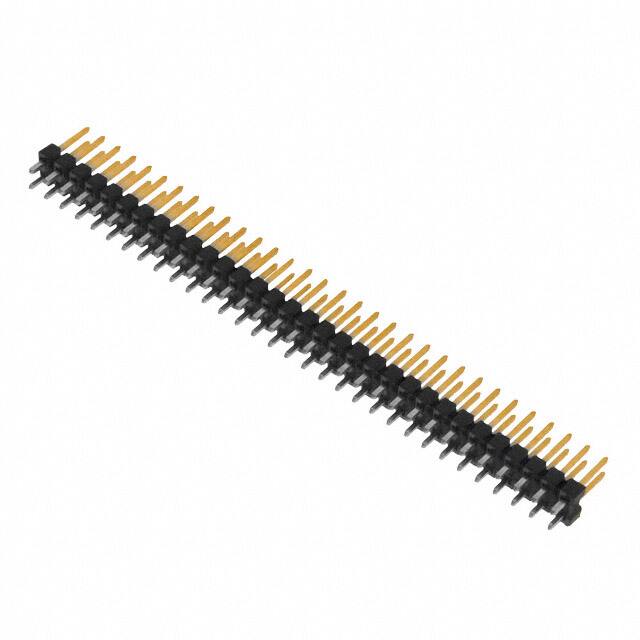

The Molex 10-89-1641 is a 64 position, 2 row, unshrouded breakaway header with a 2.54mm pitch. It features square male pins made of phosphor bronze with a tin contact finish. The header is designed for through hole mounting and solder termination, making it suitable for board-to-board or cable applications.
The insulator is black polyester, glass filled, with a UL94 V-0 flammability rating. The overall contact length is 11.10mm, with a mating pin length of 2.71mm and an insulation height of 2.29mm. The row spacing is 2.54mm. This component is rated for use in a variety of electronic interconnect applications.
The header has 64 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm.
Through hole mounting with solder termination.
Phosphor bronze contacts with a tin finish, thickness 0.38µm.
It is an unshrouded breakaway header.
