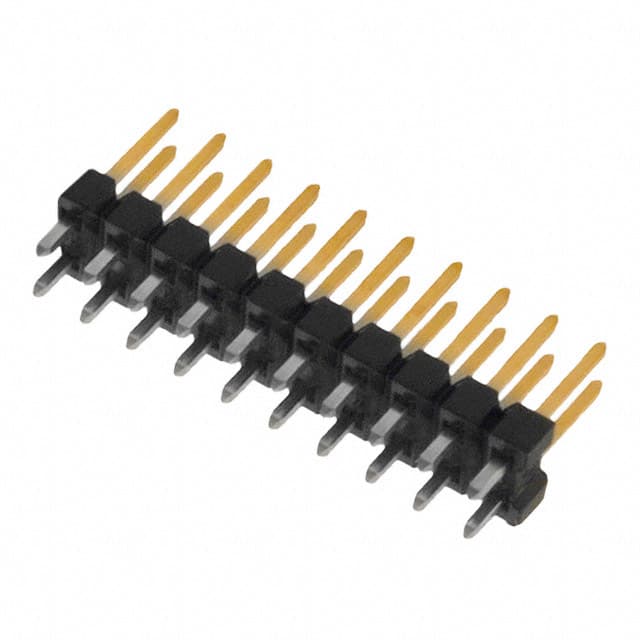

The Molex 10-89-1201 is a 20-position unshrouded header connector designed for board-to-board and cable applications. It features a 2.54mm pitch with two rows of square pins, providing reliable connections in a compact form factor. The header is through hole mounted with solder termination, suitable for wave soldering processes.
The contacts are made of phosphor bronze with a tin finish, offering good conductivity and corrosion resistance. The insulation is black polyester, glass filled, with a UL94 V-0 flammability rating, ensuring safety in various environments. The overall contact length is 11.10mm, with a mating pin length of 2.71mm.
This connector is ideal for general purpose prototyping, industrial equipment, and consumer electronics where a low-profile, unshrouded header is needed. Its push-pull fastening allows easy mating and unmating. The part is also available from distributors like Digi-Key under part number WM6820-ND.
20 positions (all loaded), arranged in 2 rows.
2.54mm (0.100") pitch.
Through hole with solder termination.
Tin, with thickness of 15.0µin (0.38µm).
Polyester, glass filled with UL94 V-0 rating.
No, it is unshrouded.
2.54mm (0.100") row spacing.
