| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,700 pcs
|
5700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
993 pcs
|
993 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Features | |
| Height | |
| Housing Material | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Width |

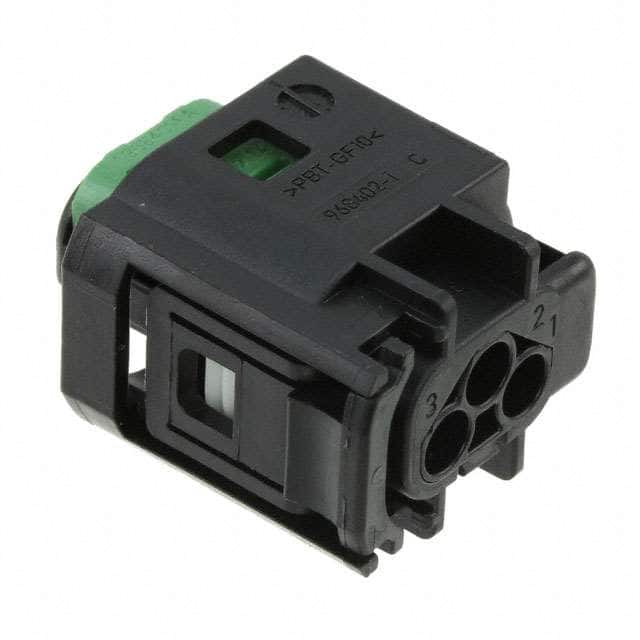

The TE Connectivity MQS 1-967642-1 is a sealed rectangular connector housing designed for automotive and industrial applications. It features a 3-position receptacle with female socket contacts, suitable for wire sizes up to 0.75 mm². The housing is made of PBT-GF15 with a silicone rubber seal, providing protection against environmental factors. The connector offers multiple coding options (A, B, C, E, Z) for keyed mating.
The housing is free hanging (in-line) with crimp termination, allowing for easy assembly and maintenance. Operating temperature range is -40°C to 120°C, making it suitable for harsh environments. The dimensions are 24.2 mm length, 14.3 mm width, and 10.3 mm height.
This connector is part of the MQS (Micro Quadlok System) family, known for compact and reliable connections. The sealed design (Single Wire Sealing) ensures protection against moisture and contaminants. Ideal for use in automotive harnesses, industrial control systems, and other applications requiring robust, sealed connections.
3 positions.
Free Hanging (In-Line).
-40°C to 120°C.
Up to 0.75 mm².
A, B, C, E, Z.
PBT-GF 15.
Silicone Rubber.
