| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,990 pcs
|
9990 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Fastening Type | |
| Housing Color | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Shell Material | |
| Shielding | |
| Type |

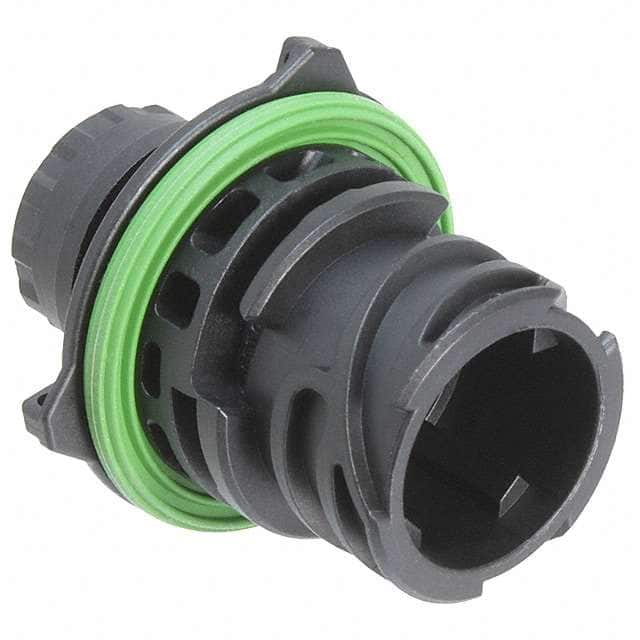

The 1-967402-1 is a circular connector receptacle housing from TE Connectivity Deutsch Connectors, designed for use with male pin contacts. It features 4 positions with a 2.5mm contact size, utilizing crimp termination. The housing is made of glass-filled PBT (Polybutylene Terephthalate) in black, providing durability and a UL94 HB flammability rating. This unshielded housing offers IP67 and IP69K ingress protection, making it suitable for harsh environments requiring dust tightness and water resistance up to high-pressure washdown. The panel mount design includes a bulkhead mounting feature with a rear side nut, and the bayonet lock ensures secure mating. The orientation is keyed to position 1. This housing is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified. It is commonly used in automotive, industrial, and marine applications where reliable connections in demanding conditions are needed.
It has 4 positions.
Panel mount with bulkhead rear side nut.
IP67 and IP69K, dust tight, water resistant, waterproof.
Male pins with crimp termination, 2.5mm contact size.
Bayonet lock.
Glass-filled Polybutylene Terephthalate (PBT).
No, it is unshielded.
