1-967280-1
TE Connectivity
Right angle header, male pins, 42 positions, 5.00mm pitch, through hole solder termination, shrouded with lever lock fastening.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,300 pcs
|
1300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

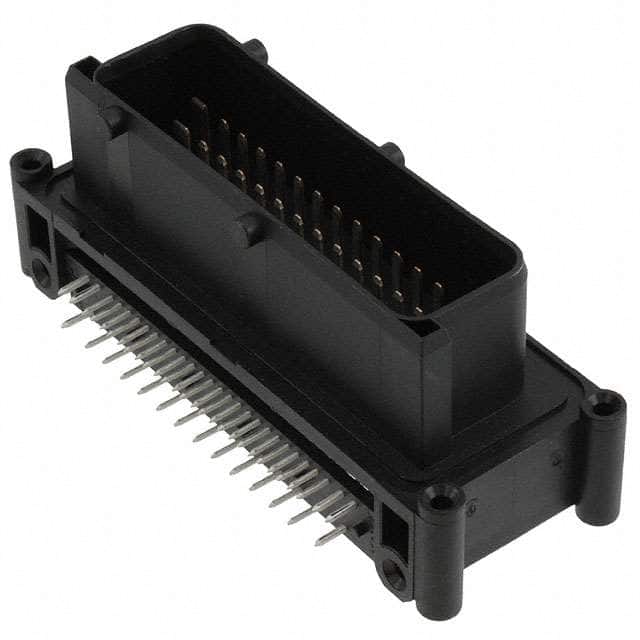

The TE Connectivity 1-963224-1 is a rectangular header connector designed for board-to-board or cable-to-board applications. It is a plug connector with 42 positions arranged in 3 rows at a 5.00mm pitch.
The connector features a right-angle through-hole mounting with solder termination. It is shrouded with a 4-wall design and includes a lever lock for secure mating. The insulation is made of glass-filled PBT in black, with an insulation height of 32.50mm.
Contacts are made of copper alloy with a tin finish, rectangular in shape. A mounting flange provides additional stability. The connector is designed for reliable connections in industrial, automotive, or consumer electronics applications requiring moderate density interconnection.
42 positions.
5.00mm.
Through hole, right angle.
Tin.
Lever lock.
Yes, shrouded 4-wall.
Polybutylene Terephthalate (PBT), glass filled.
