| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,474 pcs
|
6474 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

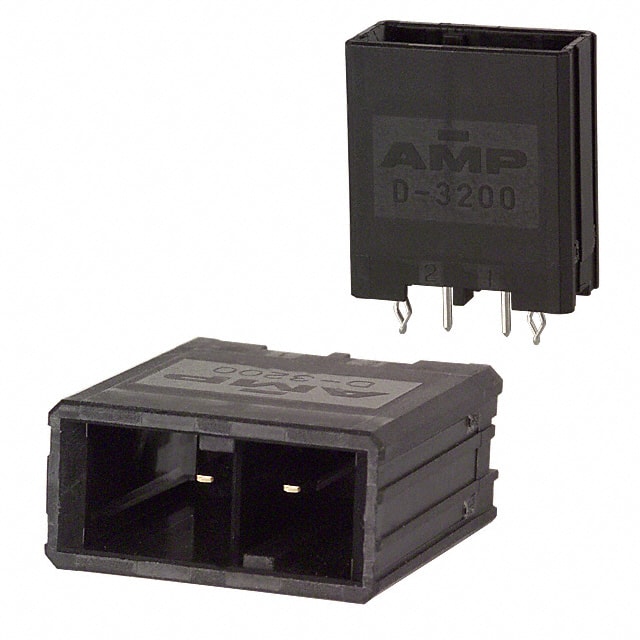

The TE Connectivity 1-917337-2 is a 2-position, single-row, shrouded header designed for board-to-board or cable applications. It features a 5.08mm pitch and through-hole mounting with solder termination. The header is fully shrouded with a 4-wall design and includes a detent lock for secure mating. The insulation is black thermoplastic, polyester, glass filled with a UL94 V-0 flammability rating. Contacts are made of copper alloy with a tin finish (0.38µm thickness) and are rectangular tabs. The header includes a board lock feature for secure attachment to the PCB. It is rated for 600V and operates over a temperature range of -55°C to 105°C.
The 1-917337-2 has 2 positions in a single row.
The pitch is 5.08mm (0.200 inches).
The voltage rating is 600V.
It uses through-hole mounting with solder termination.
The operating temperature range is -55°C to 105°C.
Yes, it is a fully shrouded header with a 4-wall design.
The contacts have a tin finish with a thickness of 0.38µm (15.0µin).
