| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

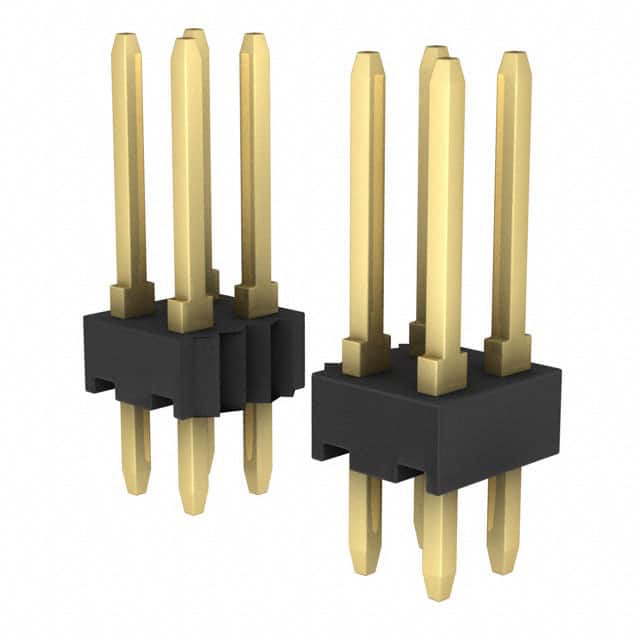

The TE Connectivity 1-87227-2 is a 24-position, 2-row unshrouded header designed for board-to-board or cable applications. It features a 2.54mm pitch and 2.54mm row spacing, making it suitable for standard 0.100 inch grid layouts. The header uses phosphor bronze male pin contacts with a 15.0µin gold finish, ensuring reliable signal integrity and corrosion resistance.
Rated for 3A per contact, this header operates over a temperature range of -65°C to 105°C. The through hole mounting and solder termination provide a robust mechanical connection. The black thermoplastic insulator carries a UL94 V-0 flammability rating, and the push-pull fastening type allows easy mating and unmating.
This unshrouded header is designed for board-to-board or cable applications. The 2.54mm pitch and 2-row configuration are standard for many industrial and consumer electronic designs. The overall contact length is 13.55mm with a mating pin length of 3.18mm.
The pitch is 2.54mm (0.100 inches).
It has 24 positions arranged in 2 rows.
The current rating is 3A per contact.
Through hole mounting with solder termination.
-65°C to 105°C.
Phosphor bronze contacts with 15.0µin gold plating.
