Mfr Part #:

1-87220-0

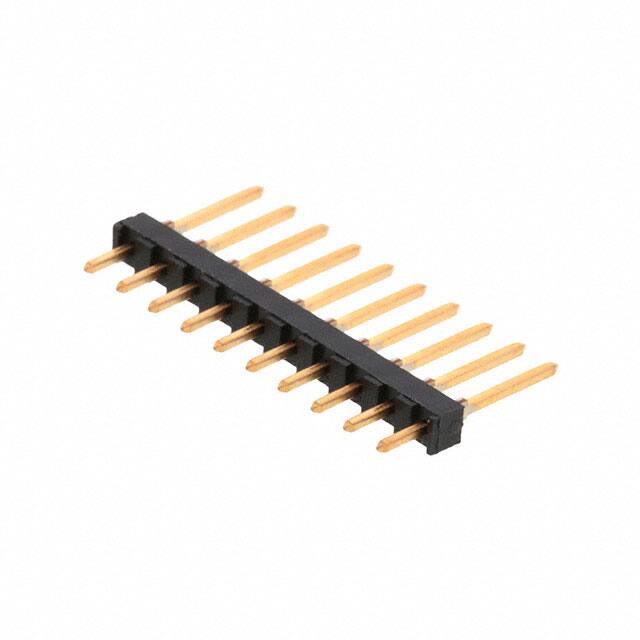

Unshrouded header connector with 10 male pin contacts in a single row, 2.54mm pitch, through hole termination. Gold plated phosphor bronze contacts and UL94 V-0 thermoplastic insulator.

✓ Total Stock: 36 pcs

$ Price Range: $5.16

1-87220-0 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	36 pcs On Request	36 pcs	On Request	1	On Request	On Request	2026-02-25 06:16:38	On Request	On Request

1-87220-0 Description

Short technical summary and product information.

The TE Connectivity 1-87220-0 is a 10-position unshrouded header connector with male pin contacts arranged in a single row. It features a 2.54mm pitch and is designed for through hole mounting with solder termination. The contacts are made of phosphor bronze with a gold finish (30µin) for reliable connectivity.

The connector has a push-pull fastening type and is suitable for board-to-board or cable applications. The black thermoplastic insulator meets UL94 V-0 flammability rating. The operating temperature range is -65°C to 105°C, and the current rating is 3A. All 10 positions are loaded.

This header is ideal for general purpose interconnection in electronic assemblies requiring a compact, reliable pin header. Its unshrouded design allows flexibility in mating with various female sockets. The gold contact finish ensures corrosion resistance and repeated mating cycles.

1-87220-0 Quick Information

Product Type: Header, Male Pins

Canonical Name: TE Connectivity 1-87220-0 Unshrouded Header, 10 Positions, 2.54mm Pitch, Through Hole, Gold

Subcategory: Unshrouded Header

1-87220-0 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

1-87220-0 Estimated Pricing

Qty	Low	High
4,000+	$5.16	$5.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

1-87220-0 Features

10-position single row configuration.
2.54mm pitch for standard spacing.
Gold plated phosphor bronze contacts.
Through hole solder termination.
UL94 V-0 rated thermoplastic housing.

1-87220-0 Applications

Ideal for board-to-board interconnections.
Used in cable-to-board wiring assemblies.
Suitable for general purpose signal routing.

1-87220-0 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the 1-87220-0 header have?

It has 10 positions in a single row.

What is the pitch of the 1-87220-0?

The pitch is 2.54mm (0.100 inches).

What is the current rating of the 1-87220-0?

The current rating is 3A.

What is the mounting type for the 1-87220-0?

Through hole mounting with solder termination.

What contact finish does the 1-87220-0 use?

Gold finish with 30µin thickness.

What is the operating temperature range?

-65°C to 105°C.

What is the insulation material and flammability rating?

Thermoplastic with UL94 V-0 rating.

Category	Headers, Male Pins
Manufacturer Name	TE Connectivity
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Contact Length	8.08mm (0.318")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.29mm (0.090")
Insulation Material	Thermoplastic
Lead Spacing	2.54 mm
Lead Style	Vertical
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-65°C ~ 105°C
Overall Contact Length	0.533" (13.55mm)
Pitch	2.54mm (0.100")
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
