| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

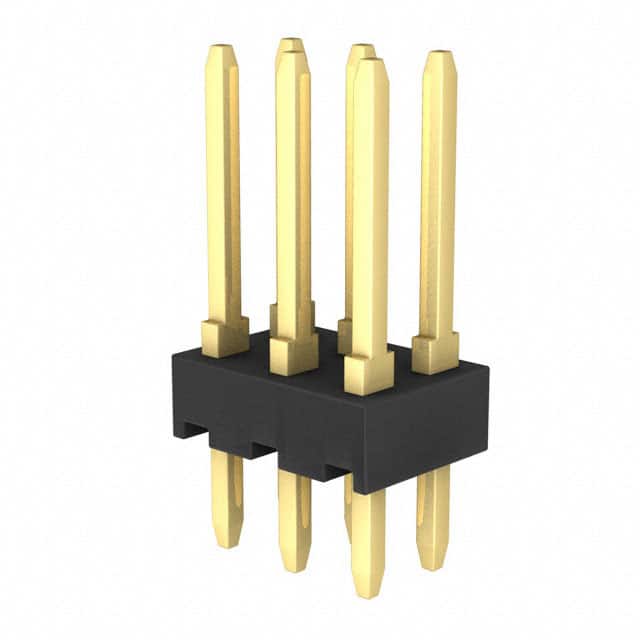

The 1-87215-2 is a 6-position, 2-row, 2.54mm pitch unshrouded header from TE Connectivity, designed for board-to-board or cable interconnects. It features through-hole mounting with solder termination, making it suitable for permanent PCB attachments.
Contact terminals are made of phosphor bronze with a gold finish (0.76µm) for reliable low-resistance connections. The insulation is black thermoplastic rated UL94 V-0, ensuring flame retardancy. The operating temperature range spans -65°C to 105°C, and the component is rated for 3A continuous current per pin.
This unshrouded header allows for easy mating with female socket connectors and is commonly used in industrial, consumer, and telecom equipment where a compact, low-cost interconnect solution is required.
6 positions arranged in 2 rows.
2.54mm (0.100") between pins and between rows.
3A per pin.
Through-hole, solder termination.
Gold plating, 0.76µm (30.0µin) thickness.
-65°C to 105°C.
UL94 V-0 for the thermoplastic insulation.
