| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
640 pcs
|
640 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

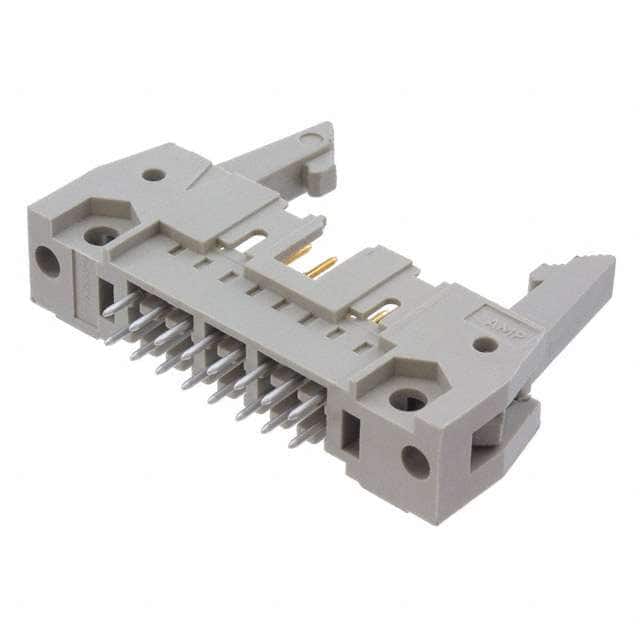

The TE Connectivity 1-828590-6 is a 16-position, 2-row header connector designed for board-to-cable/wire applications. It features a 4-wall shrouded housing with latch lock/eject hooks for secure mating and easy unmating. The contacts are male pins made of brass with a tin finish (0.80µm thickness). The insulation is glass-filled polyester in gray, with an insulation height of 8.80mm. The overall contact length is 16.56mm, and the contact length is 3.00mm. The connector includes a keying slot and mounting flange for alignment and secure attachment. It is through hole mounted with solder termination. The pitch and row spacing are both 2.54mm (0.100"). This header is suitable for applications requiring reliable, polarized connections in industrial, automotive, and consumer electronics.
16 positions in 2 rows.
2.54mm (0.100") pitch and row spacing.
Through hole with solder termination.
Latch lock/eject hooks for secure mating.
Yes, it has a 4-wall shrouded design.
Tin with 0.80µm thickness.
Polyester, glass filled, gray.
