| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
133 pcs
|
133 pcs | On Request | 10 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

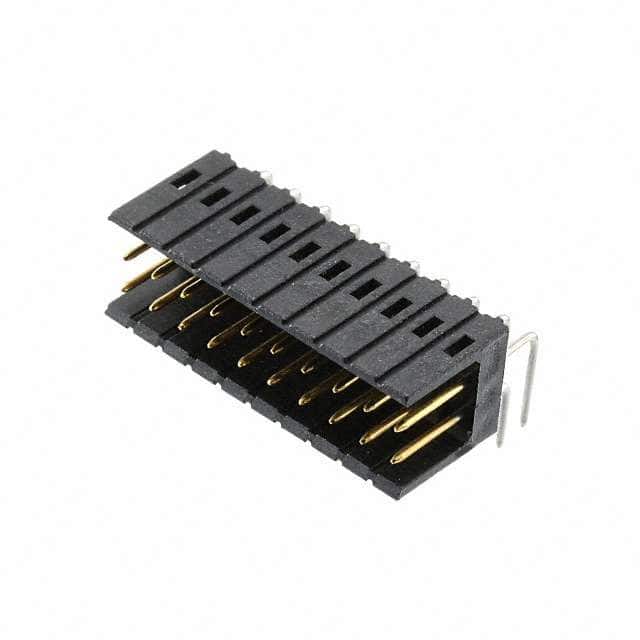

The TE Connectivity 1-826470-0 is a 20-position shrouded header designed for board-to-board or cable interconnect applications. It features two rows of male square pins on a 2.54mm pitch with a 2.54mm row spacing, providing a reliable connection in a compact form factor.
The connector uses phosphor bronze contacts with a tin finish (0.099µm thickness) and is housed in a black glass-filled PCT insulator rated UL94 V-0. The through hole right angle mounting style with solder termination allows for perpendicular board attachment. A latch holder fastening type ensures secure mating. The operating temperature range is -55°C to 105°C.
20 positions in 2 rows.
2.54mm (0.100") pitch with 2.54mm row spacing.
Through hole, right angle with solder termination.
-55°C to 105°C.
Yes, it is a shrouded - 2 wall design with a latch holder fastening type.
Phosphor bronze contacts with a tin finish (0.099µm thickness).
Glass-filled PCT (Polycyclohexylenedimethylene Terephthalate) with UL94 V-0 rating.
