| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,875 pcs
|
3875 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

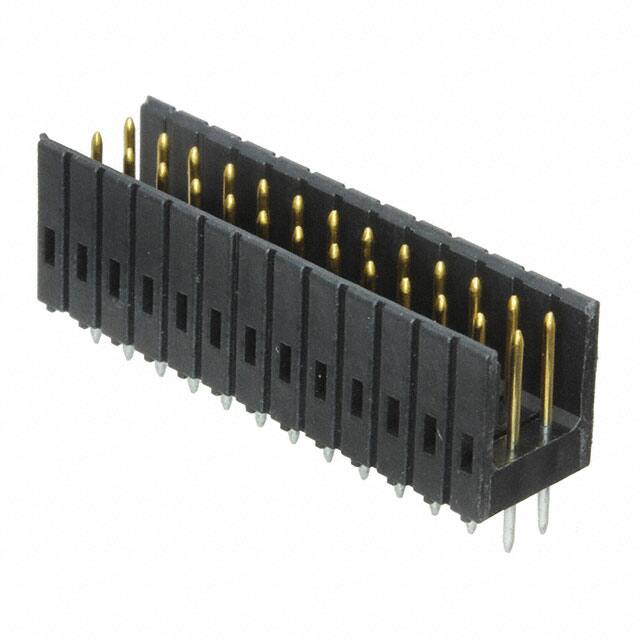

The TE Connectivity 1-826469-3 is a 26-position, 2-row shrouded header designed for board-to-board or cable applications. It uses a 2.54mm pitch and through-hole solder termination, making it suitable for standard PCB layouts.
The connector features square tin-plated phosphor bronze contacts with a contact finish thickness of 3.90µin (0.099µm). The insulator is made of black glass-filled PCT (Polycyclohexylenedimethylene Terephthalate) with a UL94 V-0 flammability rating. A latch holder fastening type provides secure mating. The operating temperature range is -55°C to 105°C.
The pitch is 2.54mm (0.100 inches).
It has 26 positions, all loaded, in 2 rows.
Through hole with solder termination.
-55°C to 105°C.
Glass-filled PCT (Polycyclohexylenedimethylene Terephthalate) with UL94 V-0 rating.
