| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,603 pcs
|
7603 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

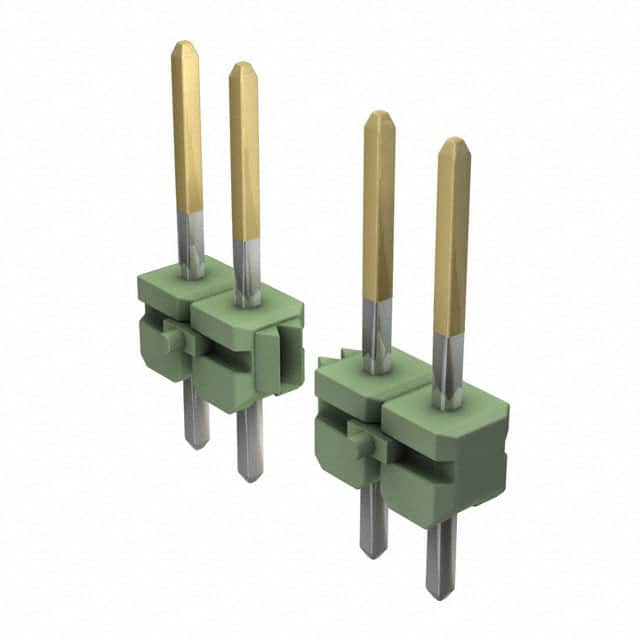

The 1-825433-0 is a header, breakaway connector from TE Connectivity designed for board-to-board or cable connections. It features an unshrouded, single-row configuration with 10 male pin contacts made of brass and finished with tin. The insulator is made of green polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating.
This through-hole connector has a pitch of 2.54mm and an overall contact length of 12.70mm. The insulation height is 2.79mm. The contacts are rated for a continuous current of 5A and can operate over a temperature range of -65°C to 105°C. The push-pull fastening type allows for easy mating and unmating.
The part is suitable for applications requiring a reliable and cost-effective header. Compliance with RoHS and REACH is unverified; contact TE Connectivity for details. The moisture sensitivity level is indicated as 1 (unlimited), though unconfirmed.
10 positions.
2.54mm (0.100").
5A.
Through Hole.
-65°C to 105°C.
Tin (flash).
Polybutylene Terephthalate (PBT), rated UL94 V-0.
