| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
51 pcs
|
51 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Pitch | |
| Termination | |
| Type |

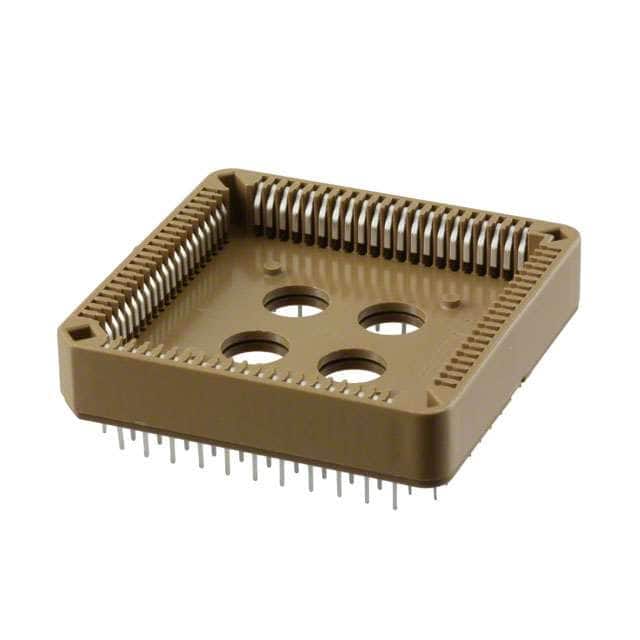

The TE Connectivity 1-822473-7 is a PLCC (Plastic Leaded Chip Carrier) socket designed for 84 position ICs. It features a through hole mounting type with solder termination, making it suitable for permanent PCB attachment. The socket has a 2.54mm (0.100") pitch and uses a closed frame design for secure IC retention.
The housing is made of thermoplastic material, and the contacts are phosphor bronze with a tin finish of 100.0µin (2.54µm). This socket is intended for use in applications requiring reliable interconnection between PLCC packaged devices and printed circuit boards.
The socket has 84 positions arranged in a 4 x 21 grid.
The pitch is 2.54mm (0.100").
Through hole mounting with solder termination.
Tin contact finish with 100.0µin (2.54µm) thickness.
Thermoplastic housing material.
Phosphor bronze contact material.
