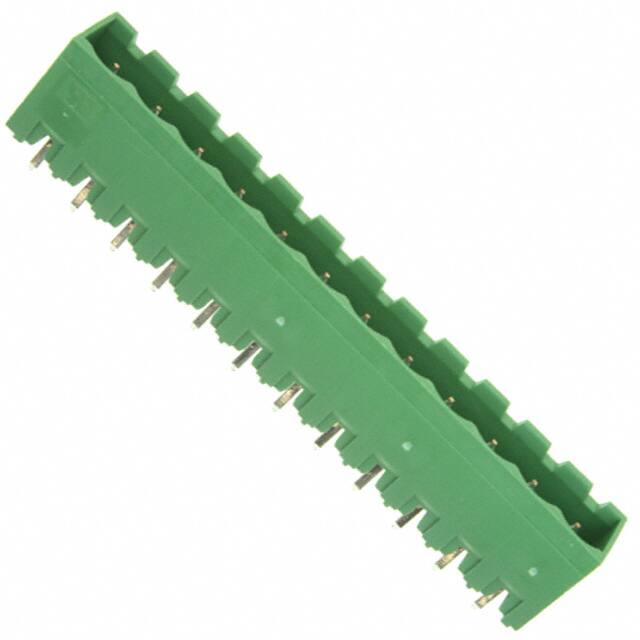

1-796636-2 This is a 12-position terminal block header from TE Connectivity, featuring a 5.08mm pitch, vertical orientation, and through hole mounting. It is rated for 300V and 15A with a tin-plated contact finish.
Mfr Part #:

1-796636-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
This is a 12-position terminal block header from TE Connectivity, featuring a 5.08mm pitch, vertical orientation, and through hole mounting. It is rated for 300V and 15A with a tin-plated contact finish.
✓ Total Stock: 54 pcs

1-796636-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
54 pcs
On Request
54 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-796636-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

1-796636-2 Description

Short technical summary and product information.

The TE Connectivity 1-796636-2 is a 12-position terminal block header designed for use in industrial control and automation applications. It features a 5.08mm (0.200 inch) pitch and vertical orientation, making it suitable for PCB mounting where space is a concern. The header is of the shrouded type with four sides, providing protection for the male pins. It is rated for 300V and 15A, with an operating temperature range of -40°C to 110°C. The housing is green, and the contact mating finish is tin. Termination is via solder, and the component is through-hole mounted. This part is RoHS3 compliant, REACH unaffected, and has a moisture sensitivity level of 1 (unlimited).

1-796636-2 Quick Information

Product Type: Terminal Block Header
Canonical Name: Terminal Block Header, 12 Positions, Vertical, 5.08mm Pitch, Through Hole, Solder
Subcategory: Terminal Block Headers

1-796636-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1-796636-2 Features

  • 12 positions with 5.08mm pitch.
  • Vertical orientation for space-saving design.
  • Rated for 300V and 15A operation.
  • Shrouded header with four side protection.
  • Through hole solder termination.

1-796636-2 Applications

  • Used in industrial control panels.
  • Suitable for power distribution blocks.
  • Ideal for automation equipment wiring.
  • Applied in building management systems.

1-796636-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

12 positions.

What is the pitch?

5.08mm (0.200 inches).

What is the current rating?

15 A.

What is the voltage rating?

300 V.

What is the mounting type?

Through hole.

What is the operating temperature range?

-40°C to 110°C.

What is the termination style?

Solder.
