| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Fastening Type | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shell Size | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

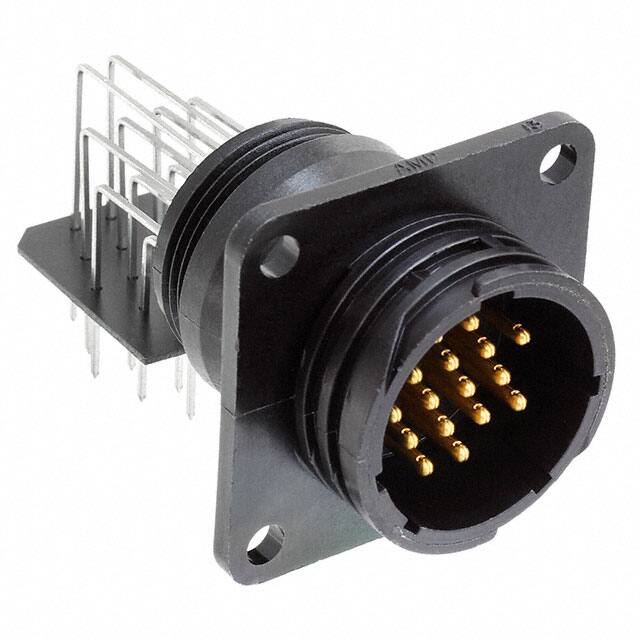

The TE Connectivity 1-796404-1 is a circular connector receptacle designed for reliable signal and power connections in demanding environments. It features 16 male pins with gold contact finish for excellent conductivity and corrosion resistance. The connector uses a threaded fastening system for secure mating and is rated for 250 VAC/DC operation.
This receptacle supports panel mount, through hole, and right angle mounting configurations, providing flexibility for various PCB and enclosure designs. The shell is made of thermoplastic material with a UL94 V-0 flammability rating, ensuring safety in high-temperature applications. The operating temperature range spans -55°C to 105°C, making it suitable for industrial and automotive environments.
The connector is terminated via solder contacts and includes a flange for secure panel mounting. Its orientation is keyed to position A, preventing mismating. The plastic primary material construction offers lightweight durability and cost-effectiveness.
| Qty | Low | High |
|---|---|---|
| 1+ | $83.01 | $83.01 |
| 10+ | $67.80 | $67.80 |
| 28+ | $64.03 | $64.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Receptacle, Male Pins
16 positions
250 VAC/DC
Panel Mount, Through Hole, Right Angle
-55°C to 105°C
Gold
UL94 V-0
