| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,800 pcs
|
1800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

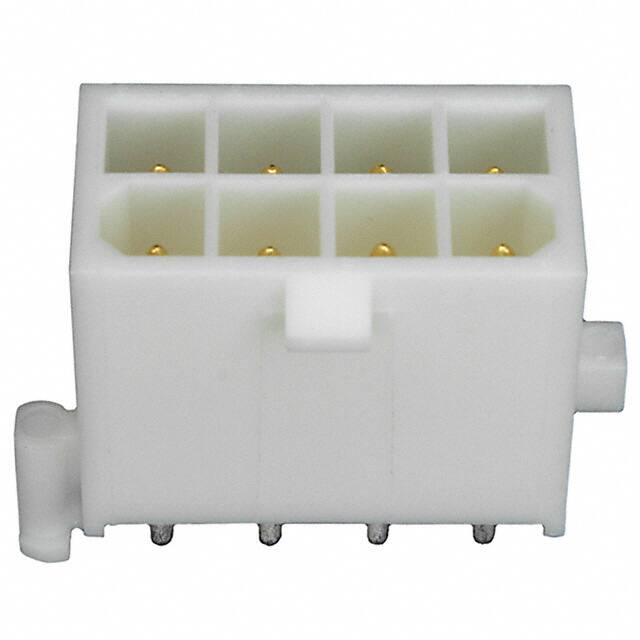

The TE Connectivity 1-794073-1 is a shrouded header connector designed for board-to-cable/wire applications. It features 8 male pin contacts arranged in 2 rows with a 4.14mm pitch and row spacing. The connector uses through hole mounting with solder termination for reliable PCB attachment.
Key specifications include a voltage rating of 600VAC and an operating temperature range of -20°C to 105°C. The current rating varies by wire gauge. The housing is made of white polyamide (nylon) with a UL94 V-0 flammability rating. Contacts are brass with a 30µin tin finish.
The connector includes a locking ramp for secure mating and a board lock feature for enhanced PCB retention. The insulation height is 13.50mm. This header is suitable for power distribution and signal interconnection in industrial and commercial equipment.
8 positions.
4.14mm.
600VAC.
Varies by wire gauge.
Through hole.
-20°C to 105°C.
Polyamide (Nylon) with UL94 V-0 rating.
