| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

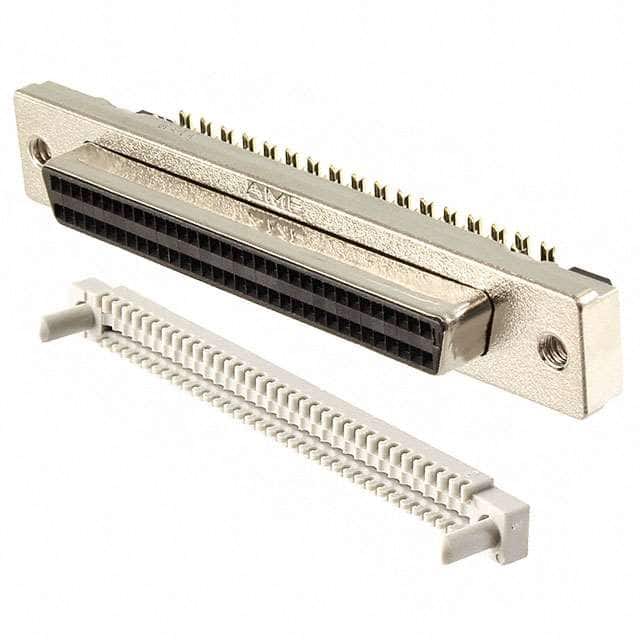

The TE Connectivity 1-786863-7 is a D-Sub connector assembly in a receptacle configuration with 68 positions arranged in 2 rows. It is designed for panel mount installation and uses IDC (Insulation Displacement Connection) termination for ribbon cables, making it suitable for mass termination applications. The connector has a D-Type shell style with a steel shell that is nickel plated for durability and EMI shielding. The contacts are female sockets with gold finish, rated for 1A current. The flange feature uses a 4-40 screw lock for secure mating. The housing material has a flammability rating of UL94 V-0. This connector is RoHS3 compliant (unverified) and has a moisture sensitivity level of 1. It is typically used in data communication and industrial equipment where reliable high-density connections are required.
68 positions in 2 rows.
1A per contact.
Panel mount.
IDC (Insulation Displacement Connection) for ribbon cable.
Gold.
0.050 inch pitch with 0.100 inch row spacing.
Steel, nickel plated.
