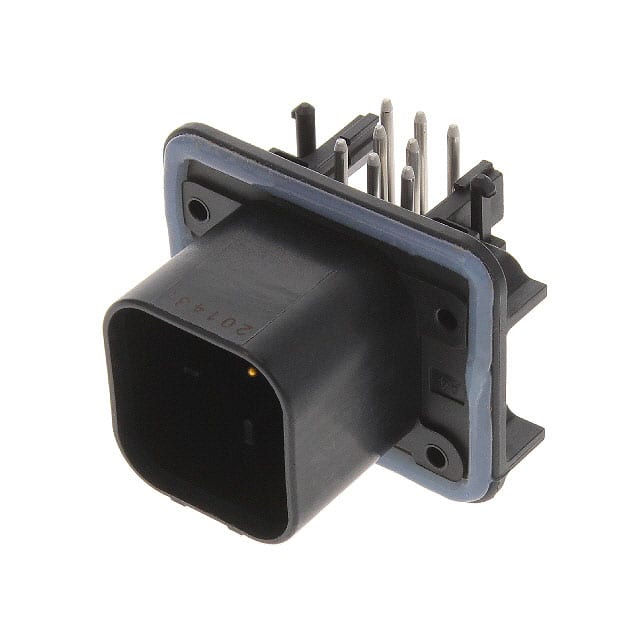

The TE Connectivity Deutsch Connectors 1-776280-1 is an 8-position, 4mm pitch, right angle header designed for board-to-cable/wire applications. It features a shrouded 4-wall housing made of black glass-filled PBT, providing robust protection for the male pin contacts. The contacts are made of brass with a gold-palladium finish, ensuring reliable signal integrity and corrosion resistance.
This header supports panel mount and through-hole mounting with solder termination. It includes a locking ramp fastening type for secure mating with the corresponding plug assembly (TE part number 776286). The design incorporates a board guide and is sealed, making it suitable for demanding environments. The operating temperature range is -40°C to 125°C, and it is rated for 250VAC.
The header is mechanically keyed by housing color to mate only with identically colored plug assemblies. The black housing variant (1-776280-1) mates with black plug assemblies. The recommended mounting screw is a 2.5mm self-tapping thread forming screw, driven to a torque of 0.6 to 0.8 N-m.
The pitch is 4.00mm (0.157 inches).
The voltage rating is 250VAC.
The operating temperature range is -40°C to 125°C.
It supports panel mount, through hole, right angle mounting with solder termination.
The contacts are made of brass with a gold-palladium finish.
The housing is made of glass-filled PBT (Polybutylene Terephthalate) and is black in color.
The recommended torque is 0.6 to 0.8 N-m.
