| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,364 pcs
|
6364 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

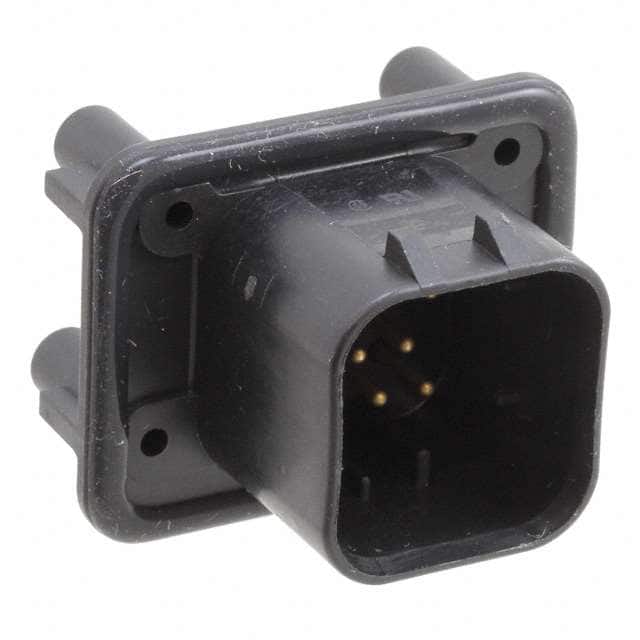

The TE Connectivity 1-776276-1 is an 8-position, 3-row header connector from the AMPSEAL family. It features a 4.00mm pitch and a shrouded 4-wall design with a locking ramp for secure mating. The contacts are made of brass with a gold-palladium finish, housed in a black glass-filled PBT insulator. The header is designed for panel mount with through hole solder termination and includes a mounting flange and sealing for environmental protection.
This connector is rated for 250VAC and operates over a temperature range of -40°C to 125°C. The current rating varies by wire gauge, making it suitable for a range of power and signal applications. The header is intended for board-to-cable/wire connections and mates with TE Connectivity plug assembly 776286.
The part is available in multiple plating and color variants, including black gold (1-776276-1), natural gold (1-776276-2), black tin (776276-1), and natural tin (776276-2). The housing colors are mechanically keyed to mate only with identically colored plug assemblies.
8 positions.
4.00mm (0.157 inches).
250VAC.
Panel mount with through hole solder termination.
Varies by wire gauge.
-40°C to 125°C.
Gold-Palladium.
