| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,798 pcs
|
9798 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
26 pcs
|
26 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

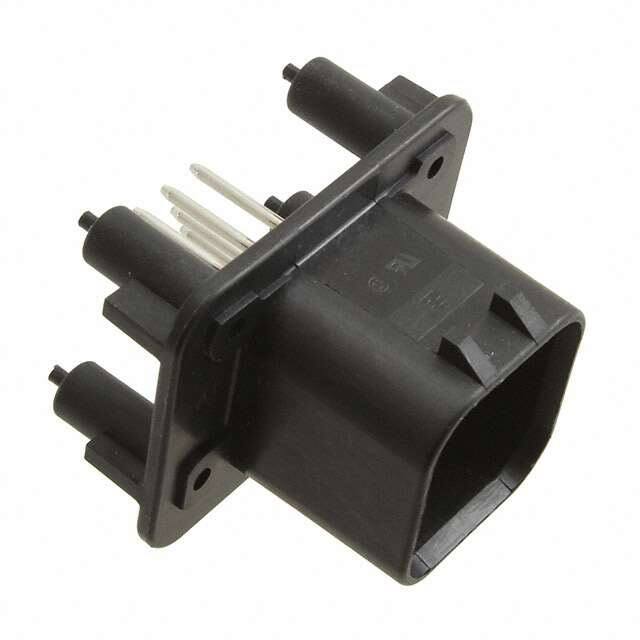

The TE Connectivity 1-776275-1 is a vertical header assembly from the AMPSEAL family, designed for board-to-cable/wire applications. It has 8 positions arranged in 3 rows with a 4.00mm pitch and 4.00mm row spacing. The header is fully shrouded (4-wall) and includes a locking ramp for fastening. It is designed for panel mount and through-hole soldering. The contact material is brass with a gold-palladium finish, and the housing is made of black glass-filled PBT. The voltage rating is 250VAC, and the operating temperature range is -40°C to 125°C. The connector is intended for use with TE's 776286 plug assembly and 770520/770854 terminals. Common applications include automotive and industrial systems requiring sealed and robust connections. The header also features mounting flanges for secure panel attachment.
8 positions.
4.00mm.
250VAC.
Panel mount and through-hole solder.
-40°C to 125°C.
Black glass-filled PBT.
Yes, it has a 4-wall shrouded design.
