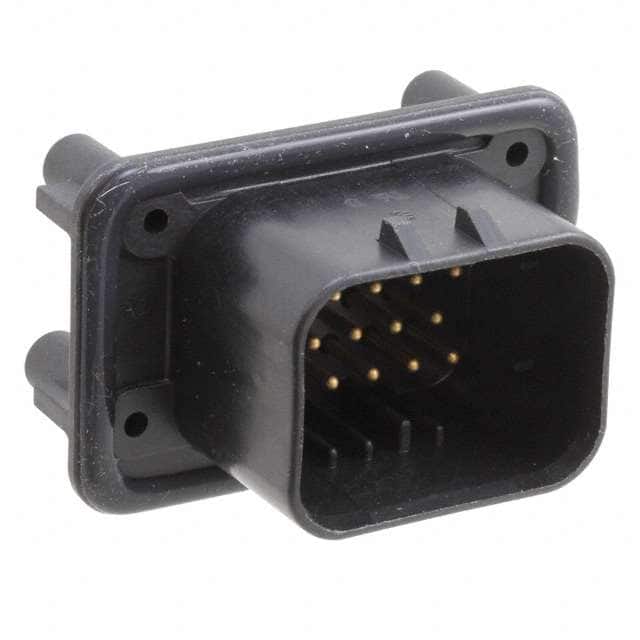

1-776262-1 The 1-776262-1 is a 14-position, 3-row, 4mm pitch vertical header from TE Connectivity. It features a shrouded design, panel mount with through hole termination, and gold-plated brass contacts.
Mfr Part #:

1-776262-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The 1-776262-1 is a 14-position, 3-row, 4mm pitch vertical header from TE Connectivity. It features a shrouded design, panel mount with through hole termination, and gold-plated brass contacts.
✓ Total Stock: 6,040 pcs

1-776262-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
6,040 pcs
On Request
6040 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-776262-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Features
Industrial Grade
Insulation Color
Insulation Material
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Panel Thickness
Pitch
Row Spacing
Shrouding
Style
Termination
Voltage Rating
Weight
View Similar Products (0)

1-776262-1 Description

Short technical summary and product information.

The 1-776262-1 is a 14-position, 3-row, 4mm pitch vertical header from TE Connectivity's AMPSEAL series. It is designed for board-to-cable/wire applications and features a shrouded 4-wall housing with a locking ramp for secure mating.



The header has a pitch of 4.00mm and row spacing of 4.00mm. It is rated for 250VAC and the current rating varies by wire gauge. The operating temperature range is -40°C to 125°C. Contacts are made of brass with gold plating (Black Gold variant). The housing is glass-filled PBT in black color.



This header is panel mount with through hole solder termination. It includes a mounting flange and is sealed with a silicone gasket. The recommended panel thickness is 4.75mm and mounting screw torque is 0.6-0.8 N-m. It mates with plug assembly 776273 using terminals 770520 (reeled) or 770854 (loose piece).



The header is designed for vertical orientation and is suitable for applications requiring a robust, sealed connection. The shrouded design provides protection and polarization.

1-776262-1 Quick Information

Product Type: Header, Male Pins
Series: AMPSEAL
Canonical Name: TE Connectivity AMPSEAL Header Assembly, 14 Position, Vertical, 4mm Pitch, Panel Mount, Shrouded, Black Housing, Gold Plated Contacts
Subcategory: Shrouded Panel Mount Header

1-776262-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1-776262-1 Features

  • 14-position, 3-row, 4mm pitch header.
  • Gold-plated brass contacts for reliability.
  • Shrouded 4-wall housing with locking ramp.
  • Panel mount with through hole termination.
  • Sealed with silicone gasket for protection.

1-776262-1 Applications

  • Board-to-cable/wire connections.
  • Panel mount sealed connector applications.

1-776262-1 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1-776262-1 header have?

14 positions.

What is the pitch of the header?

4.00mm.

What is the voltage rating?

250VAC.

What is the mounting type?

Panel mount with through hole solder termination.

What is the current rating?

Varies by wire gauge.

What is the operating temperature range?

-40°C to 125°C.

What is the contact finish?

Gold plated brass contacts (Black Gold variant).
