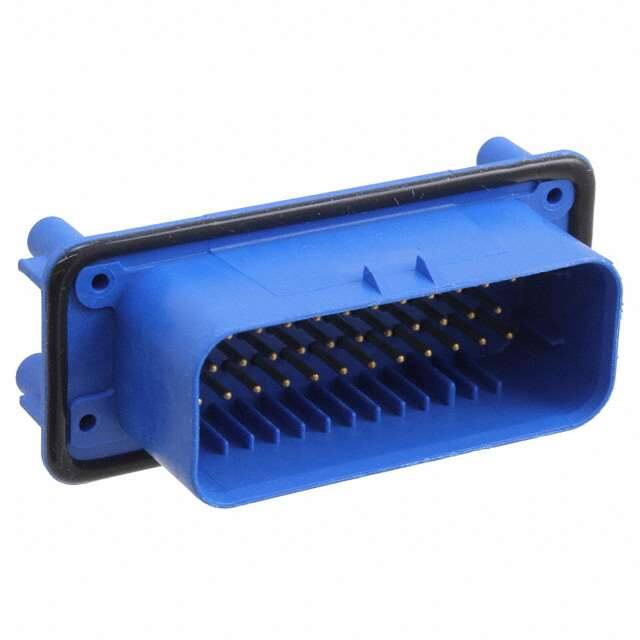

1-776231-5 TE Connectivity 1-776231-5 is a 35-position, 3-row, 4.00mm pitch vertical header connector with shrouded design and locking ramp, suitable for panel mount through-hole applications.
Mfr Part #:

1-776231-5

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1-776231-5 is a 35-position, 3-row, 4.00mm pitch vertical header connector with shrouded design and locking ramp, suitable for panel mount through-hole applications.
✓ Total Stock: 7,308 pcs

1-776231-5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
7,308 pcs
On Request
7308 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-776231-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Panel Thickness
Pitch
Row Spacing
Shrouding
Style
Termination
Voltage Rating
Weight
View Similar Products (0)

1-776231-5 Description

Short technical summary and product information.

The TE Connectivity 1-776231-5 is a 35-position, 3-row, 4.00mm pitch vertical header connector designed for board-to-cable/wire applications. It features a shrouded 4-wall design with a locking ramp for secure mating, and includes a mounting flange for panel mount installation. The housing is made of glass-filled PBT (polybutylene terephthalate) in blue, and contacts are brass with gold-palladium plating (datasheet indicates gold). The connector is rated for 250VAC operation, with current rating varying by wire gauge. It operates over a temperature range of -40°C to 125°C. The panel mount requires a 4.75mm ±0.15mm thick panel and uses M2.5 self-tapping screws with a recommended torque of 0.6-0.8 N·m. The connector weighs 40.29 grams. It is part of the AMPSEAL series and mates with plug assembly 776164 using terminals 770520 or 770854.

1-776231-5 Quick Information

Product Type: Header Connector
Series: AMPSEAL
Canonical Name: TE Connectivity 1-776231-5 Header, 35 Position, 4mm Pitch, Vertical, Shrouded
Subcategory: Headers, Male Pins

1-776231-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1-776231-5 Features

  • 35-position, 3-row header connector.
  • 4.00mm pitch spacing for compact design.
  • Shrouded with 4-wall locking ramp.
  • Panel mount with M2.5 screw mounting.
  • Rated for 250VAC operation.

1-776231-5 Applications

  • Ideal for automotive wire-to-board connections.
  • Used in sealed panel-mount applications.
  • Suitable for AMPSEAL plug assembly 776164.
  • Common in industrial control systems.
  • Designed for cable-to-board interfaces.

1-776231-5 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1-776231-5 header have?

35 positions, all loaded.

What is the pitch of the 1-776231-5 connector?

4.00mm.

What is the voltage rating of the 1-776231-5 header?

250VAC.

What mounting type does the 1-776231-5 header use?

Panel mount, through hole with solder termination.

What is the operating temperature range?

-40°C to 125°C.

How many rows of pins does the connector have?

3 rows.

Is the header shrouded?

Yes, with a 4-wall shrouded design.
