| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,320 pcs
|
1320 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
31 pcs
|
31 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Gasket Material | |
| Halogen Free | |
| Insulation Color | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Screw Size | |
| Mounting Torque | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Panel Thickness | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating | |
| Weight |

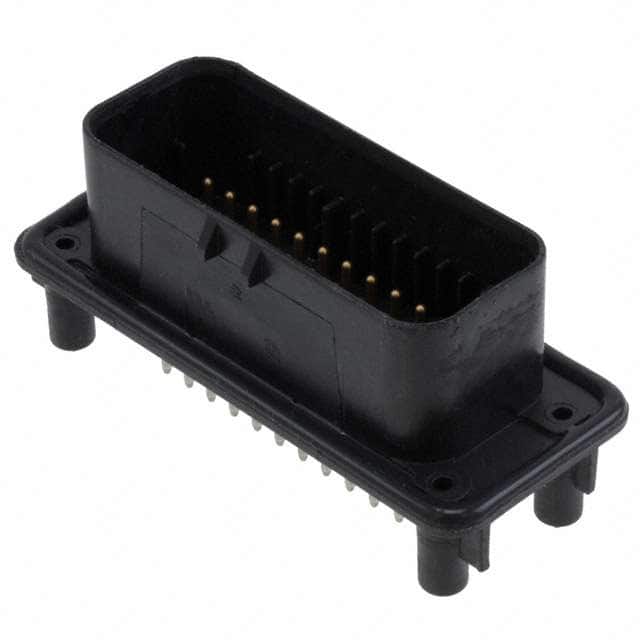

The 1-776231-1 is a 35-position, 3-row, 4.00mm pitch vertical header from the TE Connectivity AMPSEAL series. It features a shrouded 4-wall design with a locking ramp for secure mating with a compatible plug assembly. The header is designed for board-to-cable/wire applications and offers panel mount with through hole solder termination. Contacts are made of brass with gold plating, housed in a glass-filled PBT insulator (black). The gasket is silicone, providing a sealed interface. Operating temperature ranges from -40°C to 125°C, with a voltage rating of 250VAC. Current rating varies by wire gauge. It includes a mounting flange and is sealed. Recommended mounting panel thickness is 4.75±0.15mm, mounting screw size 2.5mm (self-tapping), with a torque of 0.6-0.8 N·m. This header mates with plug assembly 776164, which uses reeled housing terminal 770520 or loose piece terminal 770854.
35 positions.
4.00mm (0.157 inches).
250VAC.
Varies by wire gauge.
Panel mount, through hole, with solder termination.
-40°C to 125°C.
Brass with gold plating (database lists Gold-Palladium, but datasheet indicates gold).
