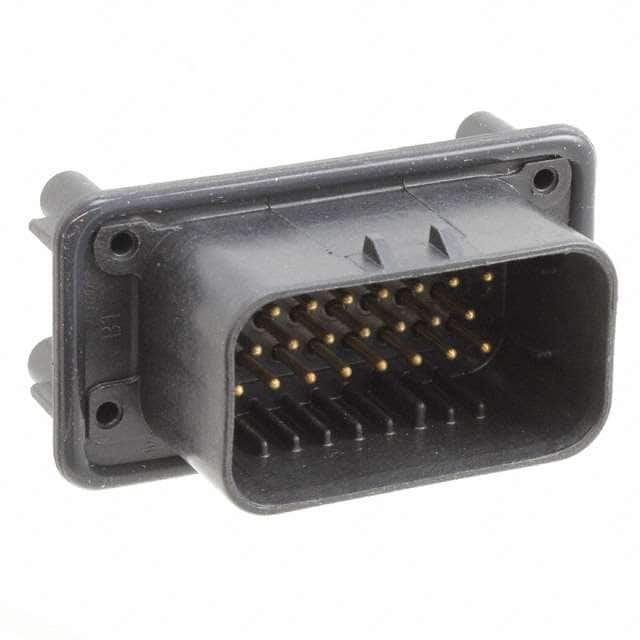

The TE Connectivity AMPSEAL 1-776228-1 is a 23-position, 3-row vertical header designed for board-to-cable/wire applications. It features a 4.00mm pitch and row spacing, with a shrouded 4-wall housing that provides robust pin protection and alignment. The header is panel mounted with through hole solder termination and includes a mounting flange and sealing gasket for environmental protection.
The housing is molded from glass-filled PBT in black, with male pin contacts made of brass with gold-palladium plating. The header mates with TE plug assembly 770680, which uses reeled terminal 770520 or loose piece terminal 770854. The operating temperature range is -40°C to 125°C, and the voltage rating is 250VAC.
This component is part of the AMPSEAL family, known for sealed, reliable interconnects suitable for demanding environments. The header weighs approximately 22.68g and is mechanically keyed by housing color to ensure correct mating with identically colored plug assemblies.
The pitch is 4.00mm (0.157 inches).
It has 23 positions arranged in 3 rows.
The voltage rating is 250VAC.
The operating temperature range is -40°C to 125°C.
It uses panel mount with through hole solder termination.
It mates with TE plug assembly 770680.
The housing is glass-filled PBT in black.
