| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,274 pcs
|
6274 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

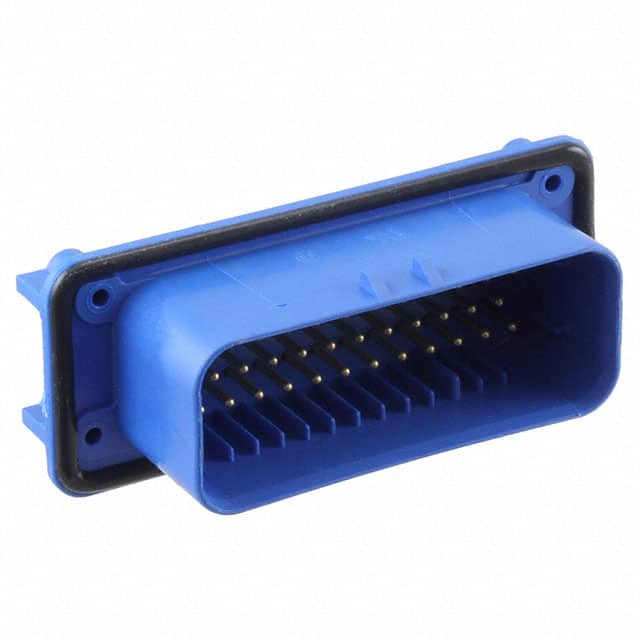

The TE Connectivity 1-776163-5 is a shrouded header with 35 positions arranged in 3 rows at a 4.00mm pitch. It features a right-angle, panel mount, through-hole design with solder termination. The connector is equipped with a locking ramp for secure mating and a 4-wall shrouding for protection. Contacts are made of brass with a gold-palladium finish, and the housing is constructed from glass-filled polybutylene terephthalate (PBT) in blue. The part is rated for 250VAC and has an operating temperature range of -40°C to 125°C. It includes a board guide and is sealed, making it suitable for board-to-cable/wire applications. The current rating varies by wire gauge, so appropriate wire selection is required.
It has 35 positions.
The pitch is 4.00mm (0.157 inches).
The current rating varies by wire gauge and is not specified as a fixed value.
It is rated for 250VAC.
It supports panel mount, through hole, and right angle mounting.
It operates from -40°C to 125°C.
The contacts have a gold-palladium finish.
