| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,507 pcs
|
8507 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
220 pcs
|
220 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Gasket Material | |
| Housing Material | |
| Insulation Color | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mating Plug | |
| Mating Terminal (Loose Piece) | |
| Mating Terminal (Reeled) | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating | |
| Weight |

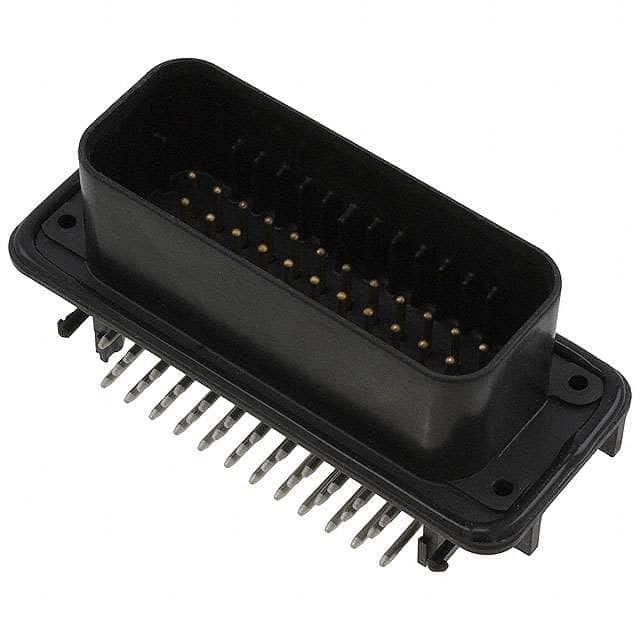

The TE Connectivity 1-776163-1 is a 35-position, 3-row header with male pin contacts arranged at a 4.00mm pitch and row spacing. It features a right-angle, through-hole mounting style with panel mount capability and solder termination. The connector is fully shrouded with a 4-wall design and includes a locking ramp for secure mating.
The header is constructed with a glass-filled PBT housing in black, brass contacts with gold-palladium plating, and a silicone gasket. It is rated for 250VAC and has an operating temperature range of -40°C to 125°C. The connector is designed for board-to-cable/wire applications and includes a board guide and sealing feature.
This header mates with TE Connectivity plug assembly 776164, using reeled terminal 770520 or loose piece terminal 770854. The housing colors are mechanically keyed to mate only with identically colored plug assemblies. The recommended mounting screw is a 2.5mm self-tapping thread forming screw driven at 0.6-0.8 N-m.
35 positions.
4.00mm (0.157 inches).
250VAC.
Panel mount, through hole, right angle.
-40°C to 125°C.
Gold-palladium plating on brass contacts.
TE Connectivity plug assembly 776164.
