| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
172 pcs
|
172 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

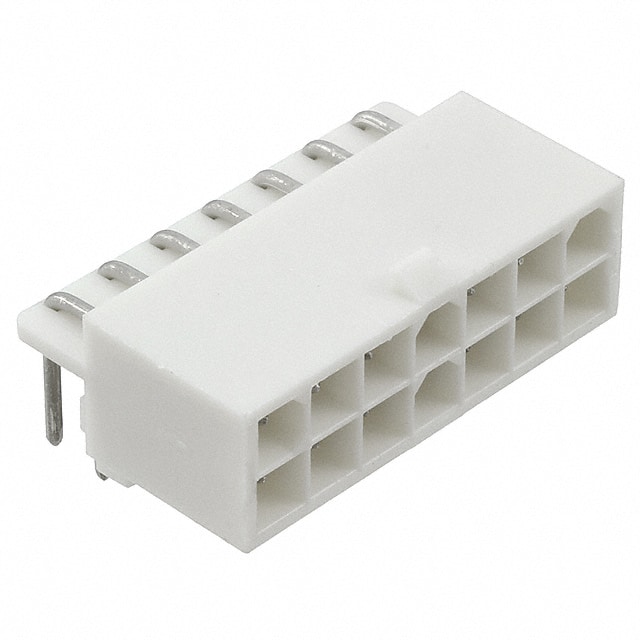

The TE Connectivity 1-770973-0 is a 14-position header with male pins, part of the rectangular connector family. It features a 4.14mm pitch and 4.14mm row spacing, with a right angle through hole mounting style. The connector is shrouded with a 4-wall design and includes a locking ramp for secure fastening, plus a board lock feature for PCB retention. Contacts are made of brass with a tin finish (150µin thickness), and the insulation is white polyamide (nylon) with a UL94 V-0 flammability rating. The operating temperature range is -20°C to 85°C, and the voltage rating is 600VAC. Current rating varies by wire gauge. This connector is designed for board-to-cable/wire applications and is RoHS3 compliant, REACH unaffected, with MSL 1 (unlimited).
This header has 14 positions, all loaded.
The pitch is 4.14mm (0.163 inches).
The voltage rating is 600VAC.
Through hole, right angle mounting.
-20°C to 85°C.
Contacts are brass with a tin finish, thickness 150µin (3.81µm).
Insulation is polyamide (nylon) with UL94 V-0 rating.
