| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

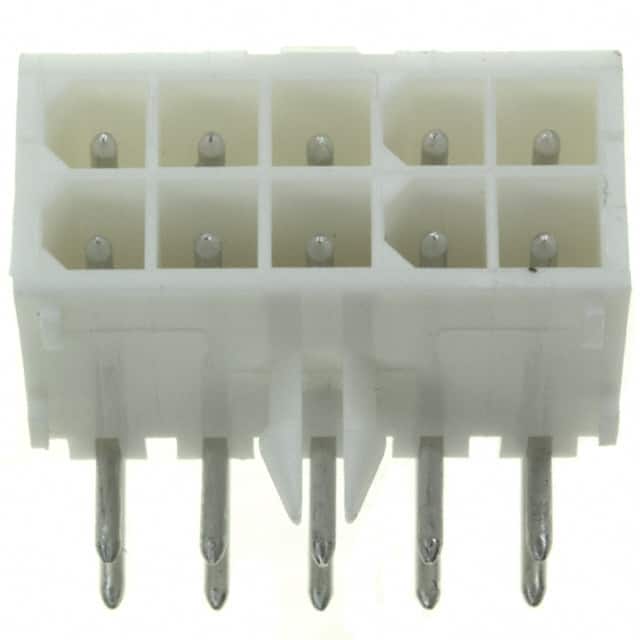

The TE Connectivity 1-770971-0 is a 10-position, 2-row rectangular header with male pins arranged at a 4.14mm pitch. It features a right-angle through-hole mounting style with solder termination, making it suitable for board-to-cable/wire applications. The connector is fully shrouded with a 4-wall design and includes a locking ramp for secure mating. Contacts are made of brass with a tin finish (150µin thickness) and have a circular shape. The insulation is white polyamide (nylon) with a UL94 V-0 flammability rating. Additional features include a board lock for enhanced PCB retention. The header is rated for 600VAC and operates over a temperature range of -20°C to 85°C. Current rating varies by wire gauge.
10 positions arranged in 2 rows.
4.14mm (0.163 inches).
600VAC.
Through hole, right angle.
-20°C to 85°C.
Polyamide (Nylon) with UL94 V-0 rating.
Tin, 150µin (3.81µm) thickness.
