| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,200 pcs
|
3200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
76 pcs
|
76 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

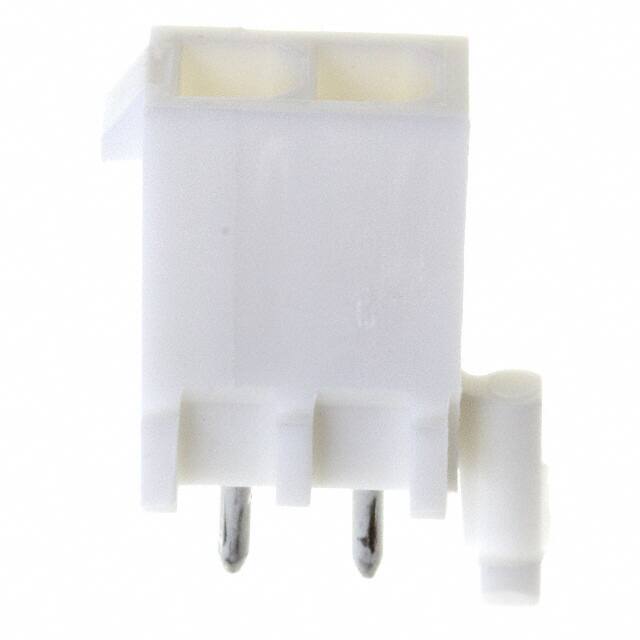

The TE Connectivity 1-770872-1 is a rectangular connector header designed for board-to-cable/wire applications. It has 2 male pin contacts arranged in a single row with a 4.14mm pitch. The connector is through-hole mounted and terminated via solder.
Mechanically, the header is fully shrouded with four walls and includes a locking ramp for secure mating. A board lock feature provides additional mechanical retention to the PCB. The insulation housing is white polyamide (nylon) with a UL94 V-0 flammability rating, and the insulation height is 13.50mm.
Electrically, it is rated for 600VAC, with the current rating dependent on the connected wire gauge. The operating temperature range is -20°C to 105°C. Contacts are made of brass with a tin plating of 30.0µin (0.76µm), ensuring reliable conductivity and corrosion resistance.
This header is suitable for a variety of industrial and commercial applications requiring a reliable, durable connection between a PCB and wire harness. The shrouded design protects contacts and aids in alignment during mating.
2 positions.
4.14mm (0.163")
Through hole.
600VAC.
-20°C to 105°C.
Yes, shrouded with 4 walls and locking ramp.
Yes, includes a board lock for mechanical retention.
