| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Pitch | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

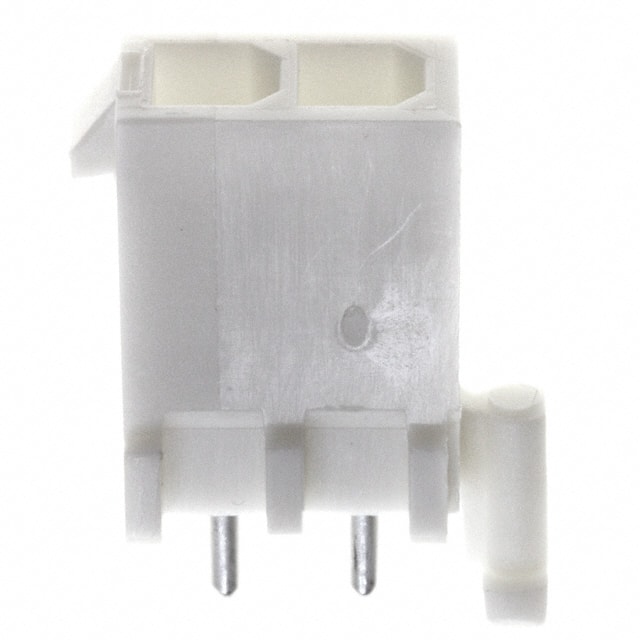

The TE Connectivity 1-770872-0 is a 2-position, single-row male pin header designed for board-to-cable or wire applications. It features a 4.14mm (0.163") pitch and a through-hole mounting style with solder termination. The housing is shrouded with four walls and includes a locking ramp for secure mating. Contacts are made of brass with a tin finish, and the insulator is white polyamide (nylon) with a UL94 V-0 flammability rating. The header supports a voltage rating of 600VAC and an operating temperature range of -20°C to 85°C. A board lock feature is included for additional retention. This connector is suitable for power or signal applications requiring a robust, polarized connection.
This header has 2 positions.
The pitch is 4.14mm (0.163 inches).
The voltage rating is 600VAC.
The mounting type is through hole.
The operating temperature range is -20°C to 85°C.
The contact finish is tin with a thickness of 150µin (3.81µm).
Yes, it has a locking ramp for secure mating.
