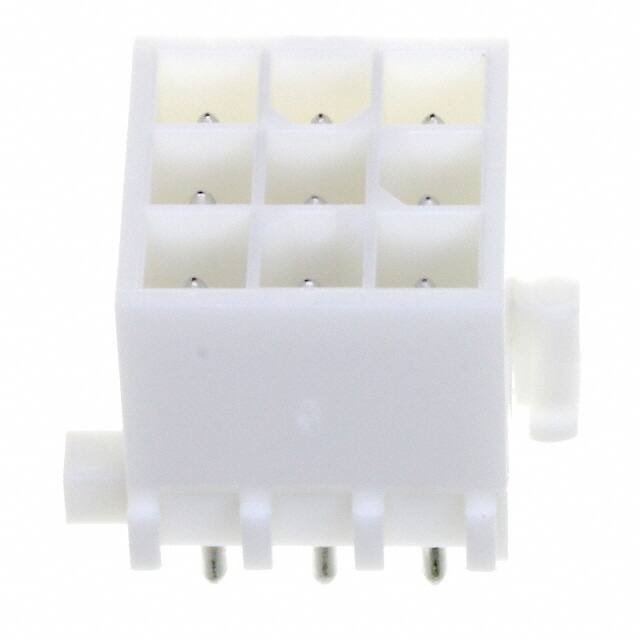

1-770182-0 TE Connectivity 1-770182-0 is a 9-position, 3-row, shrouded header with male pins. It features a 4.14mm pitch, through hole mounting, and tin-plated brass contacts.
Mfr Part #:

1-770182-0

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1-770182-0 is a 9-position, 3-row, shrouded header with male pins. It features a 4.14mm pitch, through hole mounting, and tin-plated brass contacts.
✓ Total Stock: 4,160 pcs

1-770182-0 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
160 pcs
On Request
160 pcs On Request 1 On Request On Request 1039 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-770182-0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

1-770182-0 Description

Short technical summary and product information.

The TE Connectivity 1-770182-0 is a rectangular connector header designed for board-to-cable/wire applications. It features 9 male pin contacts arranged in 3 rows with a 4.14mm pitch and row spacing of 0.163" (4.14mm). The connector is shrouded with a 4-wall design and includes a locking ramp for secure mating. It is rated for 600VAC and has an operating temperature range of -20°C to 85°C. The insulation is made of polyamide (nylon) with UL94 V-0 flammability rating, colored white. Contacts are brass with tin plating (150µin thickness). The header includes a board lock feature for secure attachment to the PCB. Mounting is through hole with solder termination. This connector is suitable for power and signal applications requiring a robust, polarized connection.

1-770182-0 Quick Information

Product Type: Header, Male Pins
Canonical Name: TE Connectivity 1-770182-0 Header, Male Pins, 9 Position, 4.14mm Pitch, Through Hole
Subcategory: Male Pins

1-770182-0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1-770182-0 Features

  • 9 positions in 3 rows with 4.14mm pitch.
  • Shrouded 4-wall design with locking ramp.
  • Rated for 600VAC operation.
  • Tin-plated brass contacts with 150µin thickness.
  • Board lock feature for secure PCB mounting.

1-770182-0 Applications

  • Used in board-to-cable/wire connections.
  • Suitable for power and signal distribution.
  • Ideal for industrial and automotive applications.
  • Provides secure mating with locking ramp.

1-770182-0 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

9 positions.

What is the pitch?

4.14mm.

What is the voltage rating?

600VAC.

What is the mounting type?

Through hole.

What is the operating temperature range?

-20°C to 85°C.

What is the contact finish?

Tin with 150µin (3.81µm) thickness.

What is the insulation material and flammability rating?

Polyamide (Nylon) with UL94 V-0 rating.
