| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

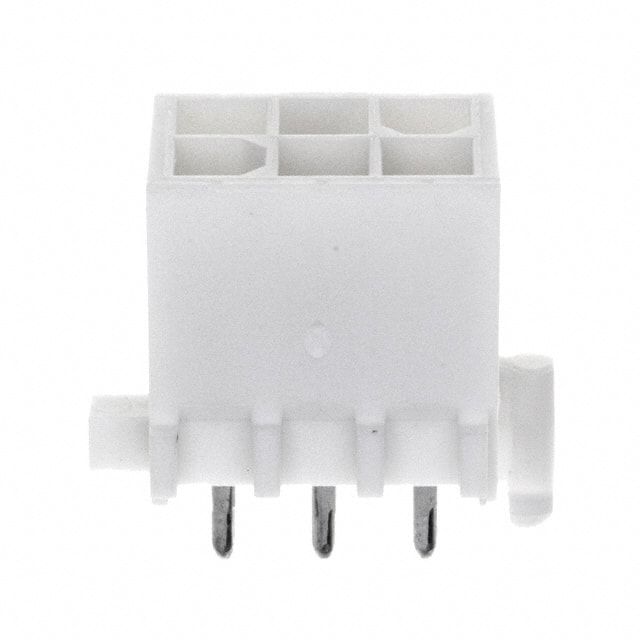

The TE Connectivity 1-770178-1 is a 6-position, 2-row, shrouded header designed for board-to-cable/wire applications. It features a 4.14mm pitch and a through-hole mounting style with solder termination. The header is fully shrouded with a 4-wall design and includes a locking ramp for secure mating.
The contacts are made of brass with a tin finish (30.0µin thickness) and have a circular shape. The insulator is white polyamide (PA) nylon with a UL94 V-0 flammability rating. The operating temperature range is -20°C to 105°C. The header is rated for 600VAC and the current rating varies by wire gauge.
The pitch is 4.14mm (0.163 inches).
It has 6 positions in 2 rows.
The voltage rating is 600VAC.
It is a through-hole mounting header with solder termination.
The operating temperature range is -20°C to 105°C.
Yes, it is a shrouded header with a 4-wall design.
The contacts are brass with a tin finish of 30.0µin (0.76µm) thickness.
