| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:33:17 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

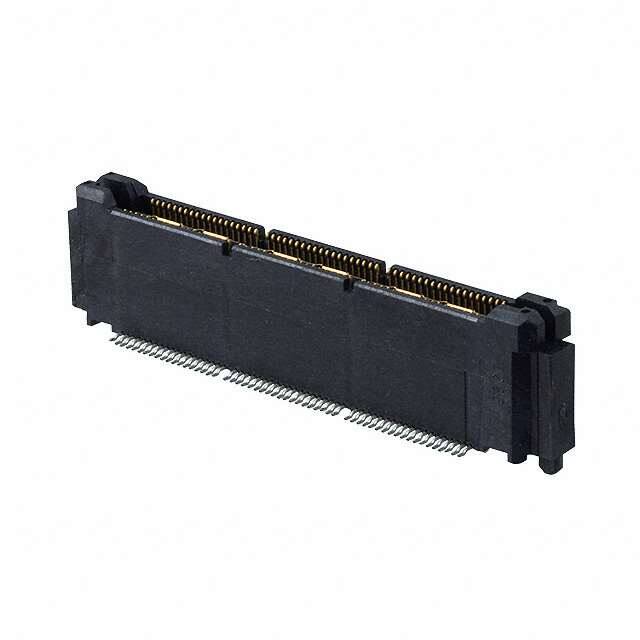

The TE Connectivity 1-767005-0 is a 114-position plug connector featuring outer shroud contacts in a 2-row configuration with a 0.64mm pitch. Designed for surface mount assembly, this connector provides a compact solution for board-to-board mezzanine applications.
Key specifications include gold contact finish with 30.0µin (0.76µm) thickness for reliable electrical performance. The connector supports mated stacking heights of 12.57mm and 21.6mm, offering flexibility in system design. Additional features include a board guide for alignment and a ground bus (plane) for improved signal integrity.
The connector measures 0.484" (12.29mm) above the board. It is intended for use in high-density interconnect systems where space is constrained.
114 positions in 2 rows.
0.64mm (0.025").
Surface mount.
Gold with 30.0µin (0.76µm) thickness.
12.57mm and 21.6mm.
Board guide and ground bus (plane).
Listed as RoHS3 Compliant, but this is unverified.
