| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

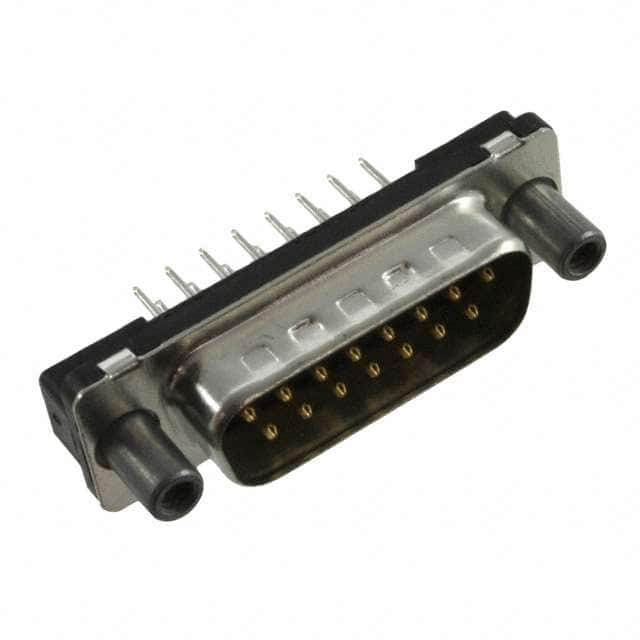

The TE Connectivity 1-747872-6 is a D-Sub plug connector with 15 male pins arranged in 2 rows. It features through-hole mounting with solder termination for secure attachment to printed circuit boards. The contacts are gold-plated for reliable signal integrity and corrosion resistance. The connector is rated for 6 A continuous current per contact, suitable for signal and low-power applications.
Mechanically, the plug uses a steel shell with tin plating for durability and EMI shielding. It includes grounding indents for improved electrical continuity and a female screwlock (4-40) on the mating side for secure connection. The insulator material meets UL94 V-0 flammability rating, ensuring safety in demanding environments. The shell size corresponds to DA (A) layout, standard for 15-position D-Sub connectors.
This connector is designed for use in data communication, industrial control, and computer peripheral interfaces where reliable signal transmission is required. Its robust construction and gold contacts make it suitable for applications requiring frequent mating cycles.
The connector has 15 positions arranged in 2 rows.
The current rating is 6 A per contact.
The mounting type is through hole with solder termination.
The contacts have a gold finish.
The shell size is 2 (DA, A), which is standard for 15-position D-Sub connectors.
The insulator material has a UL94 V-0 flammability rating.
Yes, it has a female screwlock (4-40) on the mating side.
