| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

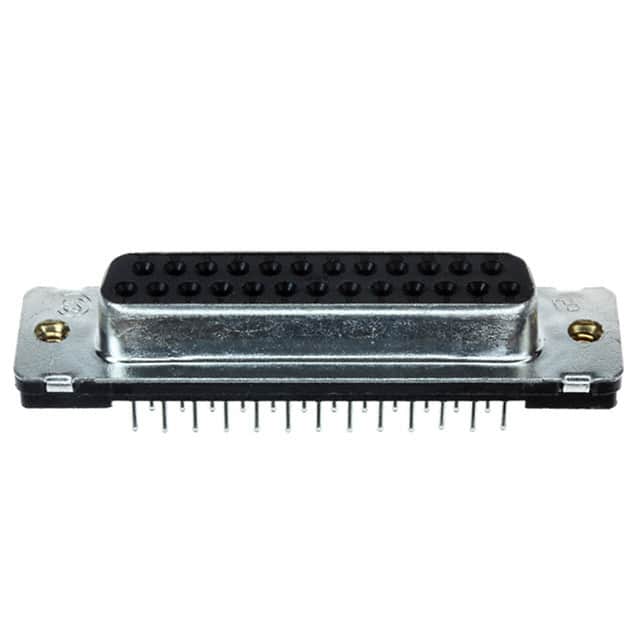

The TE Connectivity 1-745967-0 is a D-Sub receptacle connector featuring 25 female socket contacts arranged in 2 rows. It uses through hole mounting with solder termination for secure attachment to printed circuit boards. The contacts are gold plated with a thickness of 30µin (0.76µm) to ensure reliable signal transmission and corrosion resistance. Each contact is rated for 6A current, making it suitable for signal-level applications. The connector shell is made of steel with a tin plated finish, and includes a flange feature with 4-40 threaded inserts for mating with standard D-Sub plugs. The shell size is 3 (DB, B) corresponding to the 25-position layout. The insulator material has a UL94 V-0 flammability rating, indicating good flame retardant properties. This connector is designed for use in a variety of electronic equipment requiring a robust and standardized interface.
25 positions.
6A per contact.
Through hole mounting with solder termination.
Gold plating with 30µin thickness.
Steel with tin plating.
