| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
448 pcs
|
448 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

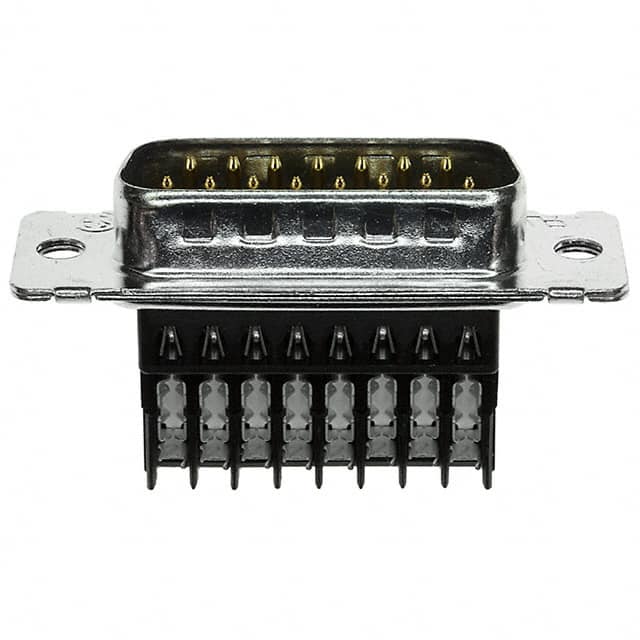

The 1-745494-5 is a D-Sub plug connector from TE Connectivity with 15 positions arranged in 2 rows. It features IDC (Insulation Displacement Connection) termination for discrete wire, allowing quick and reliable cable assembly without stripping. The connector is designed for free hanging (in-line) mounting, making it suitable for cable-to-cable or cable-to-panel applications where a fixed mounting is not required.
The contacts are signal type with gold plating (30.0µin / 0.76µm) for reliable low-level signal transmission and corrosion resistance. The shell is made of steel with tin plating, providing durability and grounding capability through grounding indents. The flange feature is housing/shell unthreaded. The insulator material has a flammability rating of UL94 V-0.
This connector is commonly used in data communication, industrial control, and computer peripheral applications requiring a robust and reliable D-Sub connection. The IDC termination simplifies assembly and reduces labor costs compared to soldered connections.
15 positions.
Free Hanging (In-Line).
D-Sub.
2 rows.
Gold, 30.0µin (0.76µm).
Steel, Tin Plated.
UL94 V-0.
