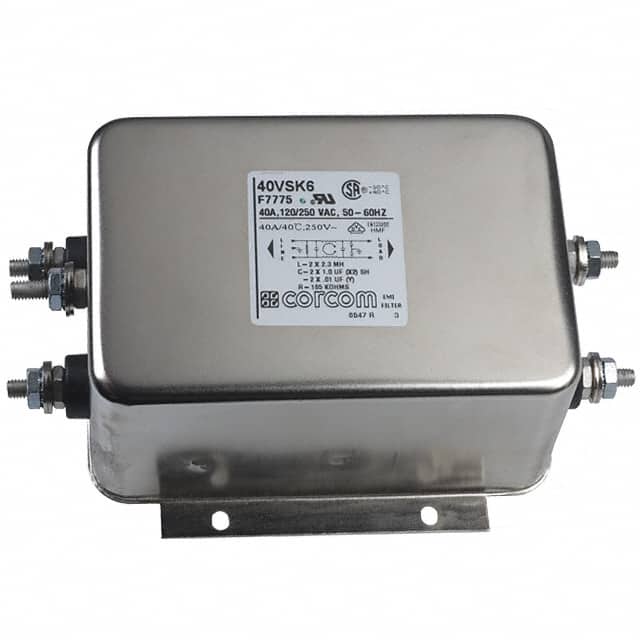

1-6609036-6 A 40A, 250VAC single phase power line filter from TE Connectivity. Chassis mount with threaded post terminations, suitable for general purpose applications.
Mfr Part #:

1-6609036-6

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
A 40A, 250VAC single phase power line filter from TE Connectivity. Chassis mount with threaded post terminations, suitable for general purpose applications.
✓ Total Stock: 4 pcs
$ Price Range: $72.22 - $83.06

1-6609036-6 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-6609036-6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Configuration
Current
Filter Type
Frequency
Inductance
Mounting Type
Operating Temperature
Termination Style
Voltage
View Similar Products (0)

1-6609036-6 Description

Short technical summary and product information.

The TE Connectivity 1-6609036-6 is a single phase, single stage power line filter designed for general purpose EMI suppression. It is rated for 40A continuous current at 250VAC and operates at 50/60Hz. The filter features an inductance of 2.3 mH and is chassis mounted with threaded post (10-32) terminations for secure connections. The operating temperature range is -10 to 40°C. It holds approvals from CSA, UR, and VDE, ensuring compliance with international safety standards. This filter is suitable for use in industrial equipment, power supplies, and other AC line applications requiring conducted noise attenuation.

1-6609036-6 Quick Information

Product Type: Power Line Filter Module
Canonical Name: Power Line Filter Module, Single Phase, 40A, 250VAC, Chassis Mount
Subcategory: Chassis Mount Power Line Filters

1-6609036-6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1-6609036-6 Estimated Pricing

Qty Low High
1+ $83.06 $83.06
12+ $78.30 $78.30
52+ $74.79 $74.79
100+ $72.22 $72.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

1-6609036-6 Features

  • Single phase EMI filter module.
  • Rated for 40A continuous current.
  • Operates at 250VAC, 50/60Hz.
  • Chassis mount with threaded post terminals.
  • Single stage filter configuration.

1-6609036-6 Applications

  • Suitable for general purpose power filtering.
  • Protects equipment from line noise.
  • Used in industrial electronic systems.
  • Ideal for AC power line applications.

1-6609036-6 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage rating?

250VAC.

What is the operating temperature range?

-10 to 40°C.

Is the filter RoHS compliant?

The part is listed as RoHS3 compliant, but this status is unverified.

What is the current rating?

40A.

What are the approval agencies?

CSA, UR, VDE.

What is the mounting type?

Chassis mount.

What is the termination style?

Threaded Post (10-32).
