| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
| On Request | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

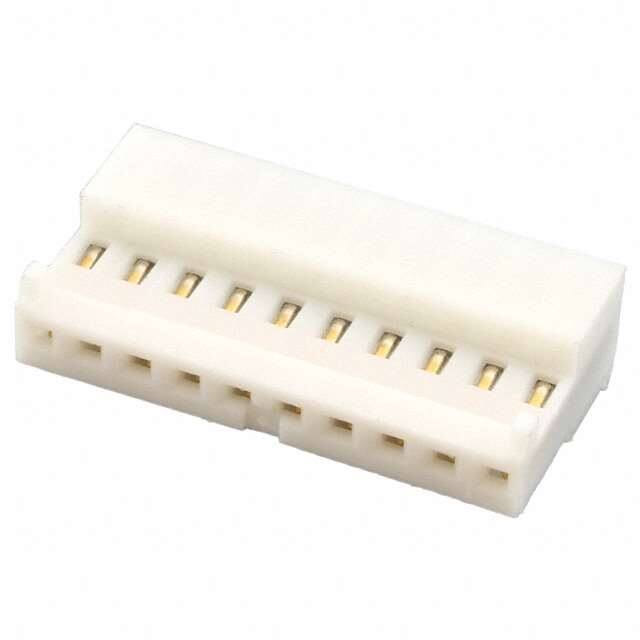

The TE Connectivity 1-644020-0 is a 10-position IDC (Insulation Displacement Connector) receptacle designed for discrete or ribbon cable termination. It features a 2.54mm (0.100") pitch and a single row of female socket contacts with gold plating (30µin). The connector is rated for 24 AWG wire and uses IDC termination for quick, reliable connections without stripping.
This connector is designed for free hanging (in-line) mounting with a right angle orientation. It includes a locking ramp fastening type for secure mating and a closed end design to prevent contact damage. The housing is white in color.
Ideal for wire-to-board or wire-to-wire applications in industrial, consumer, and telecommunications equipment where space is limited. The IDC termination reduces assembly time and improves reliability.
10 positions in a single row.
2.54mm (0.100").
Free hanging (in-line) with right angle orientation.
24 AWG wire.
Gold plating with 30µin thickness.
IDC (Insulation Displacement Connection).
Locking ramp for secure mating.
