| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Wire Gauge | |
| Wire Type |

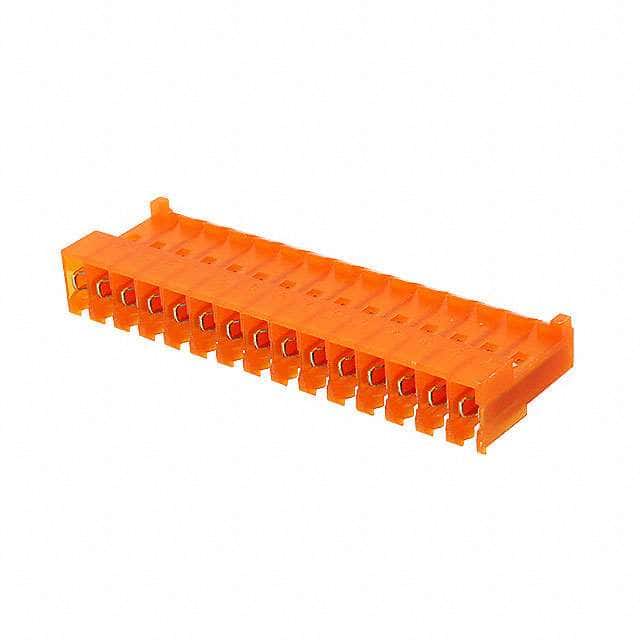

The TE Connectivity 1-643817-5 is a rectangular connector receptacle designed for free hanging (in-line) mounting. It features 15 positions in a single row with a 3.96mm (0.156") pitch, making it suitable for wire-to-wire connections.
This connector uses IDC (Insulation Displacement Connection) termination for 18 AWG wire, supporting both discrete and ribbon cable types. The contacts are female sockets with a tin-lead finish of 80.0µin (2.03µm). The housing is orange and includes a locking ramp fastening type for secure mating, along with a closed end and polarizing key for correct orientation.
Designed for reliable performance in various electronic interconnect applications, this connector is part of TE Connectivity's broad range of rectangular connector solutions.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.77 | $1.77 |
| 10+ | $1.54 | $1.54 |
| 25+ | $1.48 | $1.48 |
| 100+ | $1.38 | $1.38 |
| 250+ | $1.24 | $1.24 |
| 500+ | $1.14 | $1.14 |
| 1,000+ | $1.01 | $1.01 |
| 2,500+ | $0.95 | $0.95 |
| 5,000+ | $0.90 | $0.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 15 positions in a single row.
The pitch is 3.96mm (0.156").
It uses IDC (Insulation Displacement Connection) termination.
The connector is designed for 18 AWG wire.
The mounting type is Free Hanging (In-Line).
The contact finish is Tin-Lead with a thickness of 80.0µin (2.03µm).
